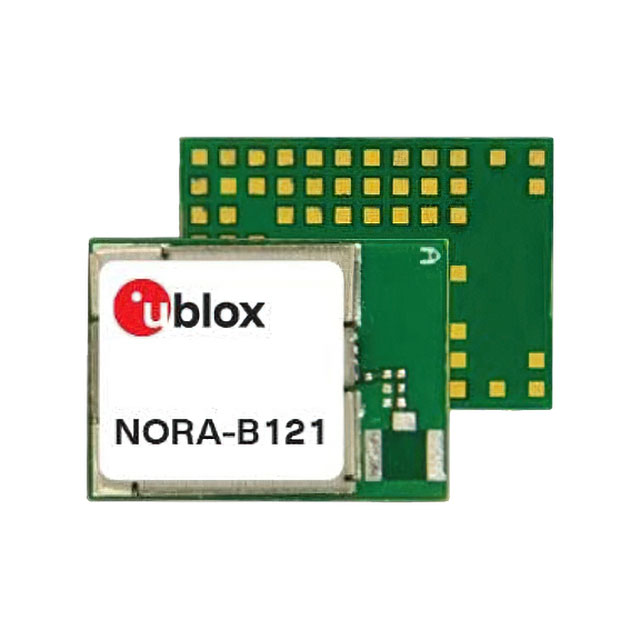

NORA-B121-00B
Activeu-blox
RF TXRX MOD 802.15.4 BT/ANTSMD
Deep-Dive with AI
Search across all available documentation for this part.
NORA-B121-00B
Activeu-blox
RF TXRX MOD 802.15.4 BT/ANTSMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NORA-B121-00B |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 3.7 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 1 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 94-SMD Module |
| Power - Output | 18 dBm |
| Protocol | Thread, Bluetooth v5.2, Zigbee® |
| RF Family/Standard | 802.15.4, Bluetooth/ANT |
| Sensitivity | -109 dBm |
| Serial Interfaces | USB, I2S, PDM, I2C, GPIO, ADC, SPI, PWM, UART |
| Utilized IC / Part | nRF5340 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.10 | |
| 10 | $ 14.65 | |||
| 50 | $ 13.47 | |||
| 100 | $ 13.33 | |||
| Digi-Reel® | 1 | $ 16.10 | ||
| 10 | $ 14.65 | |||
| 50 | $ 13.47 | |||
| 100 | $ 13.33 | |||
| Tape & Reel (TR) | 500 | $ 12.53 | ||
Description
General part information
NORA-B1 Series
802.15.4, Bluetooth/ANT Bluetooth v5.2, Thread, Zigbee® Transceiver Module 2.4GHz Antenna Not Included Surface Mount
