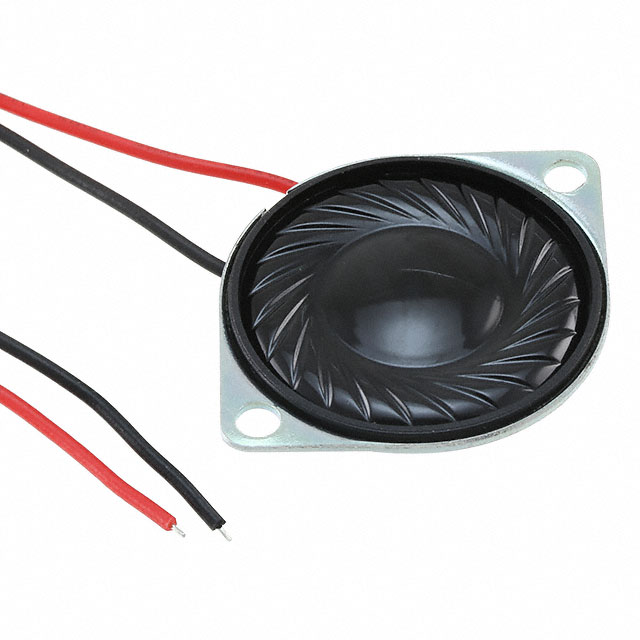

CMS-28528N-L152

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 99DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 99DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-28528N-L152

Efficiency - dBA	99 dBA
Efficiency - Testing	1W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	750 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	600 Hz
Height - Seated (Max) [Max] [z]	5.2 mm
Height - Seated (Max) [Max] [z]	0.205 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	3 W
Power - Rated	2 W
Shape	Round
Size / Dimension [diameter]	1.102 in
Size / Dimension [diameter]	28 mm
Technology	Magnetic
Termination	Wire Leads
Type	General Purpose

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Power - Rated	Type	Efficiency - Type	Impedance	Termination	Technology	Efficiency - Testing	Frequency - Self Resonant	Power - Max [Max]	Frequency Range [Min]	Frequency Range [Max]	Efficiency - dBA	Shape	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Cone	Material - Magnet	Port Location	Distortion Rating	Operating Temperature [Max]	Operating Temperature [Min]
CUI Devices CMS-28528N-L152	1.102 in	28 mm	2 W	General Purpose	Sound Pressure Level (SPL)	8 Ohms	Wire Leads	Magnetic	1W/100mm	750 Hz	3 W	600 Hz	20 kHz	99 dBA	Round	5.2 mm	0.205 in	Polyester Polyethylene Terephthalate (PET)	Nd-Fe-B	Top
CUI Devices CMS-28528N-L152A	1.102 in	28 mm	2 W	General Purpose	Sound Pressure Level (SPL)	8 Ohms	Wire Leads with Connector	Magnetic	1W/100mm	750 Hz	3 W	600 Hz	20 kHz	99 dBA	Round	5.2 mm	0.205 in	Polyester Polyethylene Terephthalate (PET)	Nd-Fe-B	Top	5 %	55 °C	-20 C
CUI Devices CMS-28528N-L152B	1.102 in	28 mm	2 W	General Purpose	Sound Pressure Level (SPL)	8 Ohms	Wire Leads with Connector	Magnetic	1W/100mm	750 Hz	3 W	600 Hz	20 kHz	99 dBA	Round	5.2 mm	0.205 in	Polyester Polyethylene Terephthalate (PET)	Nd-Fe-B	Top	5 %	55 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose Speaker 2 W 600 Hz ~ 20 kHz Top Round
