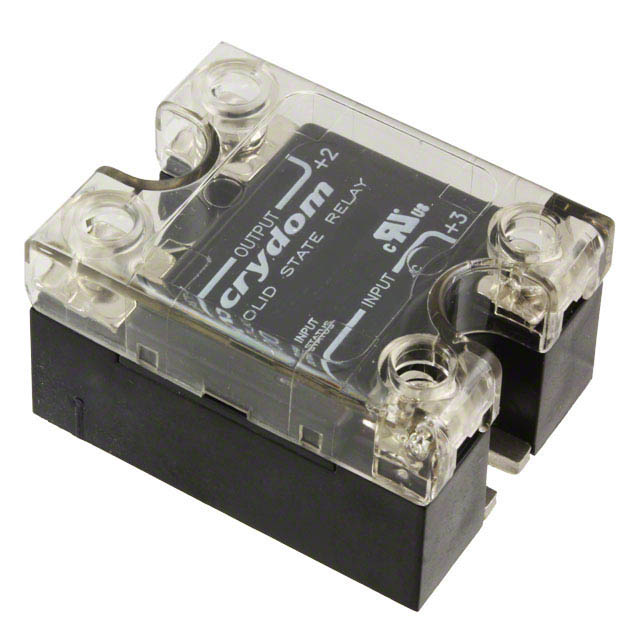

DC100A60C
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 60A 1-72V
Deep-Dive with AI
Search across all available documentation for this part.
DC100A60C
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 60A 1-72V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC100A60C |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 60 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 6 mOhms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 140 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Load [Max] | 72 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DC100A Series
Solid State SPST-NO (1 Form A) Hockey Puck
