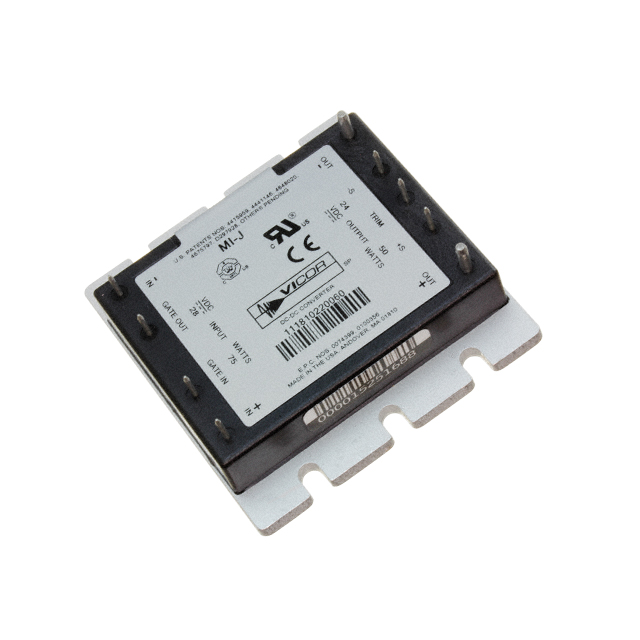

MI-J23-IY

Active

Vicor Corporation

DC DC CONVERTER 24V 50W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 24V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Type	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
Vicor Corporation MI-J23-MY-F2	3000 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	ITE (Commercial)	24 V	90 %	50 V	2.083 A	50 W	Isolated Module	1	9-DIP Module	18 V	Through Hole	85 °C	-55 °C	OCP OTP OVP Remote On/Off
Vicor Corporation MI-J23-IY-F3	3000 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	ITE (Commercial)	24 V	90 %	50 V	2.083 A	50 W	Isolated Module	1	9-DIP Module	18 V	Through Hole	85 °C	-40 °C	OCP OTP OVP Remote On/Off
Vicor Corporation MI-J23-IY	3000 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	ITE (Commercial)	24 V	90 %	50 V	2.083 A	50 W	Isolated Module	1	9-DIP Module	18 V	Through Hole	85 °C	-40 °C	OCP OTP OVP Remote On/Off
Vicor Corporation MI-J23-IY-F2	3000 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	ITE (Commercial)	24 V	90 %	50 V	2.083 A	50 W	Isolated Module	1	9-DIP Module	18 V	Through Hole	85 °C	-40 °C	OCP OTP OVP Remote On/Off
Vicor Corporation MI-J23-MZ	3000 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	ITE (Commercial)	24 V	90 %	50 V	1.04 A	25 W	Isolated Module	1	9-DIP Module	18 V	Through Hole	85 °C	-55 °C	OCP OTP OVP Remote On/Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 2.083A 18V - 50V Input
