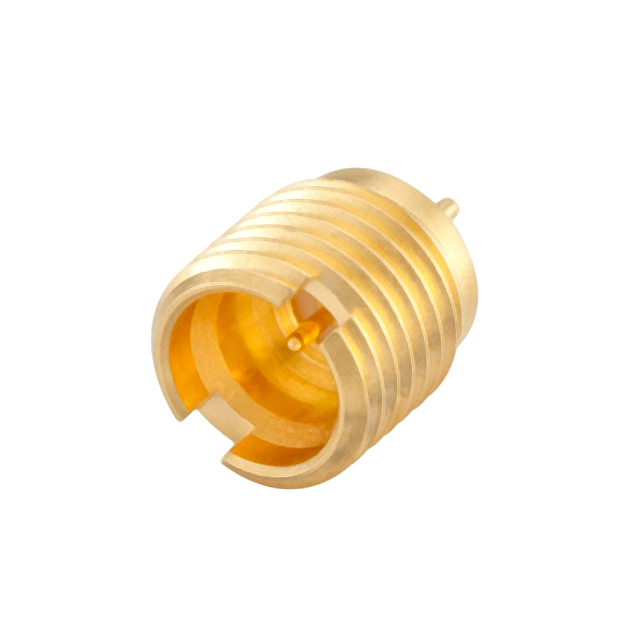

19S105-500L5

Active

Rosenberger

CONN SMP PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	19S105-500L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Panel Mount, Threaded
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Features	Center Contact Material	Body Finish	Housing Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Shield Termination	Contact Termination	Frequency - Max [Max]	Dielectric Material	Number of Ports	Body Material	Center Contact Plating	Fastening Type	Connector Type	Mating Cycles	Voltage Rating
Rosenberger 19S105-500L5	Limited Detent	Brass	Gold	Gold	Panel Mount Threaded	155 °C	-65 ░C	50 Ohms	Solder	Solder	26.5 GHz	Polytetrafluoroethylene (PTFE)	1	Brass	Gold	Snap-On	Male Pin Plug	500	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Panel Mount, Threaded Solder
