100DP2T7B13M3RE

Active

E-Switch

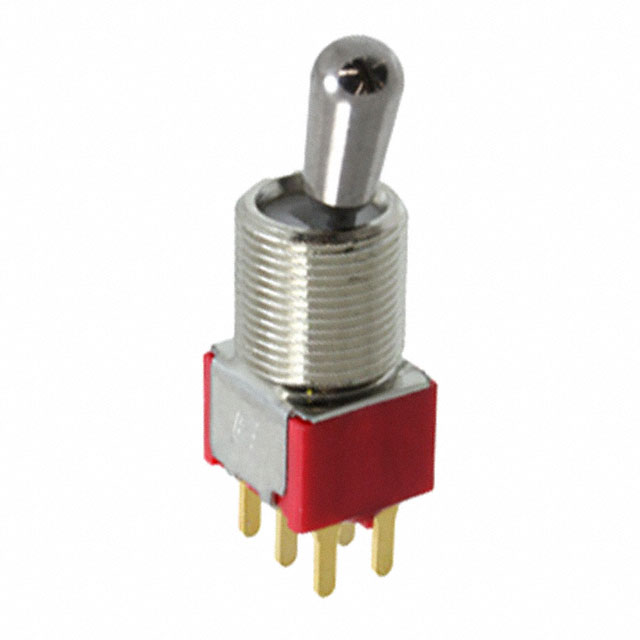

SWITCH TOGGLE DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	100DP2T7B13M3RE

Actuator Length [x]	13 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	11.91 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Material	Termination Style	Switch Function	Voltage Rating - DC	Actuator Type	Circuit	Actuator Length [x]	Bushing Thread	Illumination	Features	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Mounting Type
E-Switch 100DP2T1B1M1QE	-30 ░C	85 °C	120 V	Brass Chrome Plated	Solder Lug	On-Mom	28 V	Standard Round	DPDT	10.41 mm	1/4-40	Non-Illuminated	Epoxy Sealed Terminals	40000 Cycles	5 A	0.25 in
E-Switch 100DP2T7B13M3RE	-30 ░C	85 °C	20 V	Brass Chrome Plated	Quick Connect - 0.062" (1.5mm)	On-Mom	20 V	Standard Round	DPDT	13 mm	15/32-32	Non-Illuminated	Epoxy Sealed Terminals	40000 Cycles	0.4 VA	11.91 mm
E-Switch 100DP2T2B4M7QE	-30 ░C	85 °C	120 V	Brass Chrome Plated	PC Pin	On-Mom	28 V	Standard Round	DPDT	5.08 mm	Unthreaded	Non-Illuminated	Epoxy Sealed Terminals	40000 Cycles	5 A		Right Angle Through Hole Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 3.75

General part information

Toggle Switch DPDT Panel Mount
