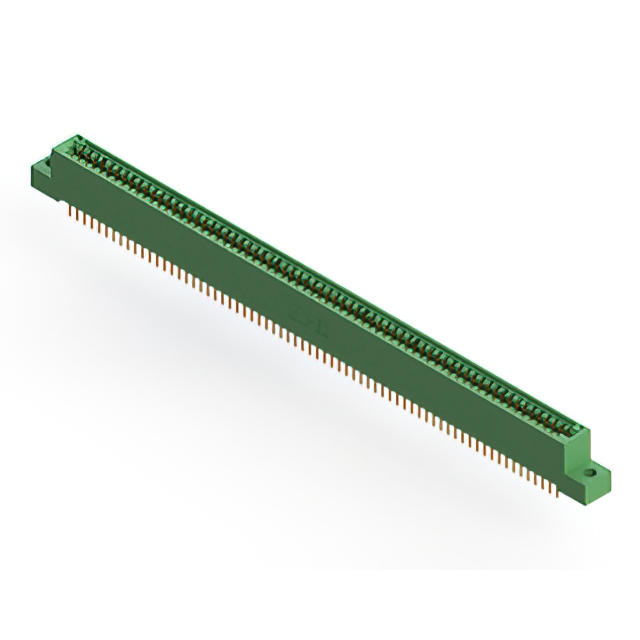

845-136-520-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 136POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-136-520-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 136 |
| Number of Positions/Bay/Row [custom] | 68 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-136 Series
...
| Part | Number of Positions | Color | Mounting Type | Termination | Number of Positions/Bay/Row [custom] | Material - Insulation | Card Type | Read Out | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Contact Finish | Contact Material | Features | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 136 | Green | Board Edge Straddle Mount | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | Card Extender | 2 | 125 °C | -40 °C | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 3.25 mm | 0.128 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | Floating Bobbin Flush Mount | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.116 in | 2.95 mm | |||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 3.25 mm | 0.128 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||
EDAC Inc. | 136 | Green | Board Edge Straddle Mount | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | Card Extender | 2 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||
EDAC Inc. | 136 | Green | Through Hole | Wire Wrap | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | Flush Mount Top Opening Unthreaded | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.156 in | 3.96 mm | |||
EDAC Inc. | 136 | Green | Through Hole | Solder | 68 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Cantilever | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Gold | Copper Alloy | 2 | 125 °C | -40 °C | Flush Mount Top Opening Unthreaded | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-136 Series
136 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
