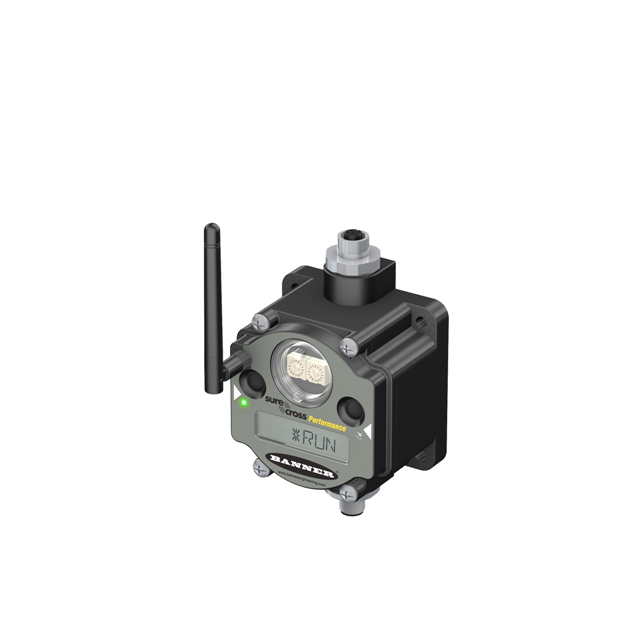

DX80N2X6S-P6

Active

BANNER ENGINEERING

DX80 PERFORMANCE 2.4 GHZ NODE 65MW IP67

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DX80 PERFORMANCE 2.4 GHZ NODE 65MW IP67

Technical Specifications

Parameters and characteristics for this part

Part	Modulation or Protocol	Features	Power - Output	Function	Applications	Frequency	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING DX80N9X1W0P0ZTA	FHSS ISM	IP67	20 dBm	Node	ISM	900 MHz
BANNER ENGINEERING DX80N9X1S-P6	FHSS ISM	IP67	36 dBm	Gateway	ISM	900 MHz	Serial	30 VDC	10 VDC
BANNER ENGINEERING DX80N9X6S-P6-AN	FHSS ISM	IP67	30 dBm	Node	ISM	900 MHz	Serial	30 VDC	10 VDC
BANNER ENGINEERING DX80N9Q45VTP										Temperature Vibration	1.81 mOhm	-40 °C	70 °C
BANNER ENGINEERING DX80N2X6S-P6	FHSS ISM	IP67	65 mW	Gateway	ISM	2.4 GHz	Serial	30 VDC	10 VDC
BANNER ENGINEERING DX80N9Q45VA-BK										Temperature Vibration	1.81 mOhm	-40 °C	70 °C
BANNER ENGINEERING DX80N9X6S-PM8	FHSS ISM	IP67	36 dBm	Gateway	ISM	900 MHz		30 VDC	10 VDC
BANNER ENGINEERING DX80N9X2S-P7	FHSS ISM	LED Indicator	30 dBm	Node	Wireless	900 MHz	Connector	30 VDC	10 VDC
BANNER ENGINEERING DX80N9Q45VAC	FHSS ISM	IP67	30 dBm	Node	Wireless	900 MHz	Serial
BANNER ENGINEERING DX80N9Q45UAA												-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 599.00
Newark	Each	1	$ 610.00

General part information

RF Gateway 2.4GHz FHSS, ISM Serial
