2SA2092TLQ

Rohm Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR, 1A I(C), 60V V(BR)CEO, 1-ELEMENT, PNP, SILICON, TSMT3, 3 PIN

Search across all available documentation for this part.

Rohm Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR, 1A I(C), 60V V(BR)CEO, 1-ELEMENT, PNP, SILICON, TSMT3, 3 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	2SA2092TLQ

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	300 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-96
Power - Max [Max]	500 mW

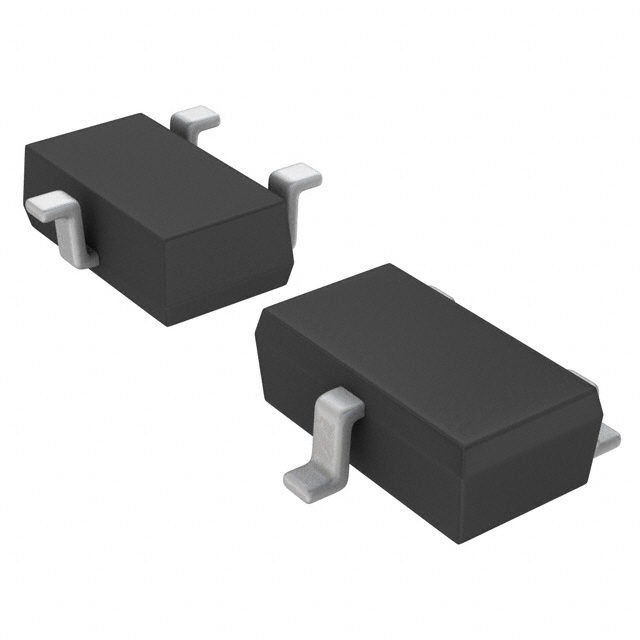

Supplier Device Package	TSMT3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Frequency - Transition	Mounting Type	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Power - Max [Max]
Rohm Semiconductor 2SA2092TLQ	300 MHz	Surface Mount	PNP	SC-96	60 V	120	500 mV	150 °C	1 µA	1 A	TSMT3	500 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 60 V 1 A 300MHz 500 mW Surface Mount TSMT3
