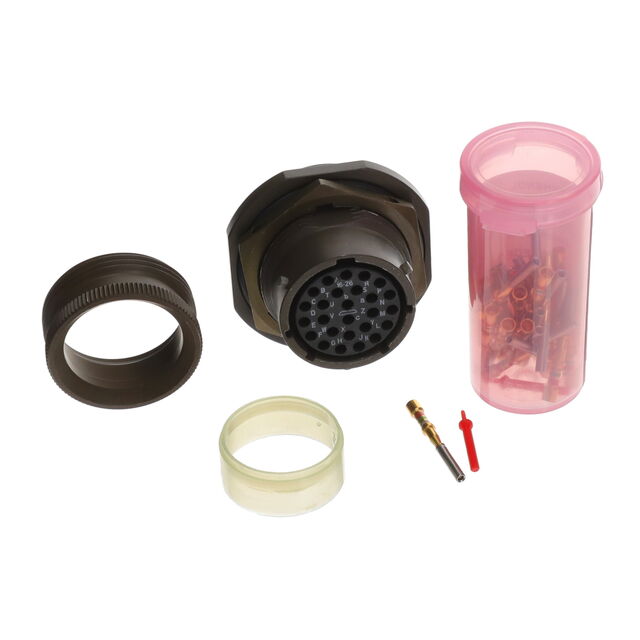

MS3124E16-26S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3124E16-26S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Ingress Protection	Number of Positions	Contact Material	Primary Material	Current Rating (Amps)	Applications	Color	Orientation	Shell Material	Insert Material	Grade	Shielding	Voltage Rating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Fastening Type	Shell Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Qualification	Contact Finish - Mating	Connector Type
Amphenol Industrial Operations MS3124E16-23S(LC)
Amphenol Industrial Operations MS3124E16-8P
Amphenol Industrial Operations MS3124E16-8S
Amphenol Industrial Operations MS3124E16-26S	Environment Resistant	26	Copper Alloy	Metal	7.5 A	Aerospace Industrial Instrumentation Mass Transit Military	Olive Drab	N	Aluminum	Neoprene	Military	Unshielded	600 VAC	16	26	Bayonet Lock	Olive Drab Chromate over Cadmium	Crimp	-55 °C	125 °C	Bulkhead - Front Side Nut	MIL-DTL-26482 Series I	Gold	Receptacle Female Sockets
Amphenol Industrial Operations MS3124E16-26P(LC)
Amphenol Industrial Operations MS3124E16-8P(LC)
Amphenol Industrial Operations MS3124E16-23S
Amphenol Industrial Operations MS3124E16-14P(LC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Circular Connector Receptacle, Female Sockets Crimp
