125CH-G-08

Active

Adam Tech

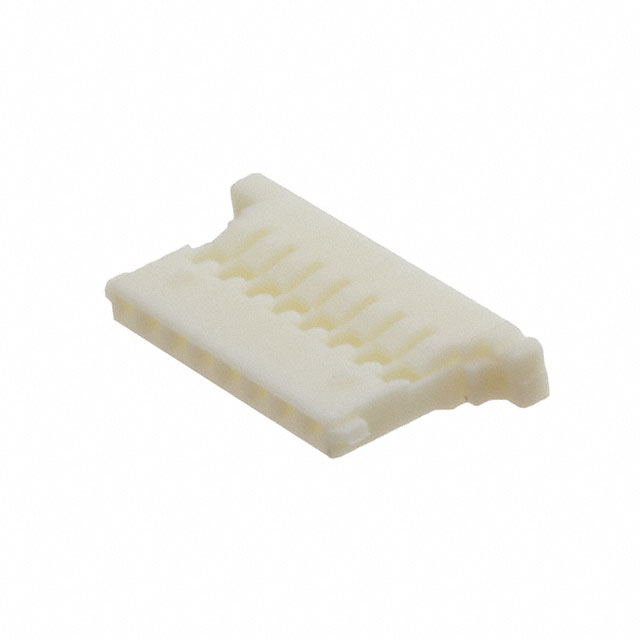

CONN RCPT HSG 8POS 1.25MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 8POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	125CH-G-08

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Color	Note	Number of Rows	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Fastening Type	Mounting Type	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type
Adam Tech 125CH-G-08	White	Contacts Not Included	1	Crimp	Polybutylene Terephthalate (PBT)	0.049 in	1.25 mm	Friction Lock	Free Hanging (In-Line)	Receptacle	8	-25 °C	85 °C	Female Socket
Adam Tech 125CH-G-02	White	Contacts Not Included	1	Crimp	Polybutylene Terephthalate (PBT)	0.049 in	1.25 mm	Friction Lock	Free Hanging (In-Line)	Receptacle	2	-25 °C	85 °C	Female Socket
Adam Tech 125CH-G-06	White	Contacts Not Included	1	Crimp	Polybutylene Terephthalate (PBT)	0.049 in	1.25 mm	Friction Lock	Free Hanging (In-Line)	Receptacle	6	-25 °C	85 °C	Female Socket
Adam Tech 125CH-G-09	White	Contacts Not Included	1	Crimp	Polybutylene Terephthalate (PBT)	0.049 in	1.25 mm	Friction Lock	Free Hanging (In-Line)	Receptacle	9	-25 °C	85 °C	Female Socket
Adam Tech 125CH-G-07	White	Contacts Not Included	1	Crimp	Polybutylene Terephthalate (PBT)	0.049 in	1.25 mm	Friction Lock	Free Hanging (In-Line)	Receptacle	7	-25 °C	85 °C	Female Socket
Adam Tech 125CH-G-05	White	Contacts Not Included	1	Crimp	Polybutylene Terephthalate (PBT)	0.049 in	1.25 mm	Friction Lock	Free Hanging (In-Line)	Receptacle		-25 °C	85 °C	Female Socket
