Q-0405E0003036i

Active

Amphenol Custom Cable

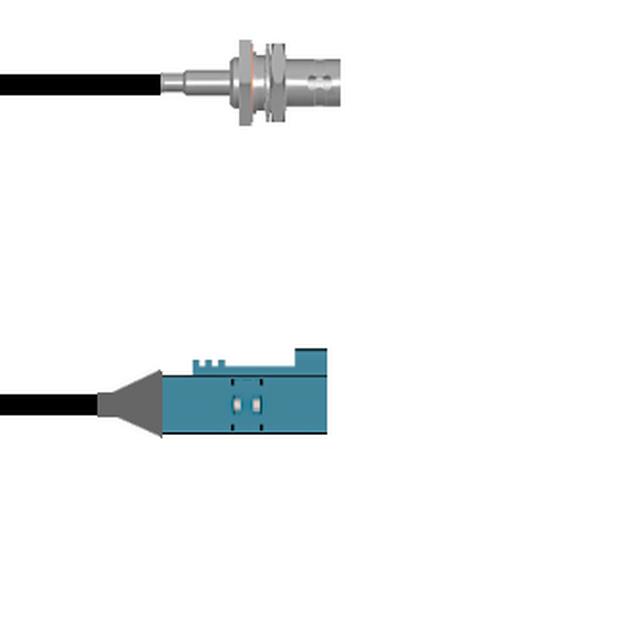

CBL ASSY BNC-FAKRA JACK-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0405E0003036i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA JACK-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0405E0003036i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0405E0 Series

Part	Features	Style	1st Connector	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	1st Contact Gender	Overall Impedance	Color	1st Connector Mounting Feature	2nd Contact Gender	Frequency - Max [Max]	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0405E0005036i	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-316	Female	50 Ohms	Copper	Bulkhead - Front Side Nut	Female	3 GHz	91.44 cm	36 in
Amphenol Custom Cable Q-0405E0005001M	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-316	Female	50 Ohms	Copper	Bulkhead - Front Side Nut	Female	3 GHz	1 m	39.4 in	3.3 ft
Amphenol Custom Cable Q-0405E0003.25M	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-174	Female	50 Ohms	Black	Bulkhead - Front Side Nut	Female	3 GHz				9.843 "	250 mm
Amphenol Custom Cable Q-0405E0003036i	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-174	Female	50 Ohms	Black	Bulkhead - Front Side Nut	Female	3 GHz	91.44 cm	36 in
Amphenol Custom Cable Q-0405E0003.75M	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-174	Female	50 Ohms	Black	Bulkhead - Front Side Nut	Female	3 GHz	750 mm	29.53 "
Amphenol Custom Cable Q-0405E0005084i	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-316	Female	50 Ohms	Copper	Bulkhead - Front Side Nut	Female	3 GHz	2.1 m	84 in	7 ft
Amphenol Custom Cable Q-0405E0003003i	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-174	Female	50 Ohms	Black	Bulkhead - Front Side Nut	Female	3 GHz	76.2 mm	3 in
Amphenol Custom Cable Q-0405E0005002M	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-316	Female	50 Ohms	Copper	Bulkhead - Front Side Nut	Female	3 GHz	2 m	78.7 in	6.6 ft
Amphenol Custom Cable Q-0405E0005003i	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-316	Female	50 Ohms	Copper	Bulkhead - Front Side Nut	Female	3 GHz	76.2 mm	3 in
Amphenol Custom Cable Q-0405E0005072i	Shielded	BNC to Fakra	BNC Jack	Fakra Jack	Free Hanging (In-Line)	Panel Mount	RG-316	Female	50 Ohms	Copper	Bulkhead - Front Side Nut	Female	3 GHz	1.8 m	72 in	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 50.48
		25	$ 49.49
		50	$ 48.50
		100	$ 47.52
		250	$ 46.53

Description

General part information

Q-0405E0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
