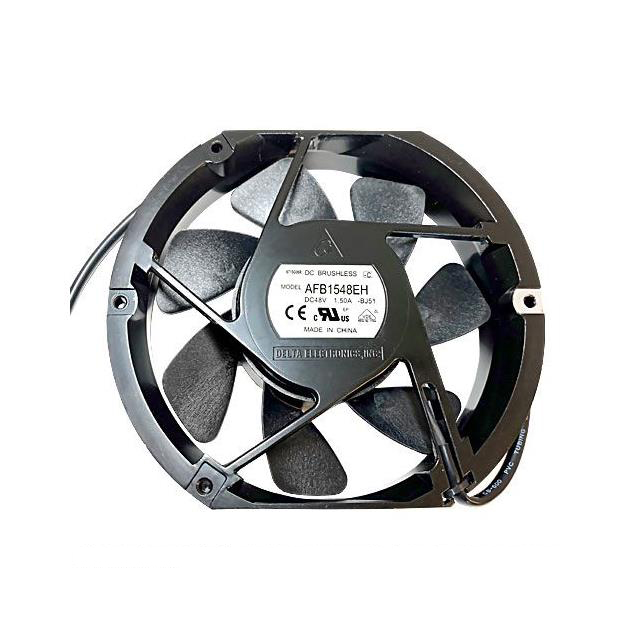

AFB1548VH-CD8G

Active

Delta Electronics

FAN AXIAL 172X25.4MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 172X25.4MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AFB1548VH-CD8G

Air Flow	8.54 m³/min
Air Flow	305 CFM
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	650 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	65 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	31.2 W
RPM	5000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	298.4 Pa
Static Pressure	1.198 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	42 VDC
Weight	499 g
Weight	1.1 lbs
Width [y]	25.4 mm

Part	Static Pressure	Static Pressure	Bearing Type	Features	Current Rating (Amps)	Air Flow	Air Flow	Weight	Weight	Fan Type	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Lifetime @ Temp.	Approval Agency	RPM	Material - Frame	Width [y]	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Voltage - Rated [custom]	Termination
Delta Electronics AFB1548VH-CD8G	298.4 Pa	1.198 in H2O	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	650 mA	8.54 m³/min	305 CFM	499 g	1.1 lbs	Tubeaxial	31.2 W	42 VDC	60 V	Rectangular/Rounded	150 mm	172 mm	70000 Hrs	CE cURus VDE	5000 RPM	Aluminum	25.4 mm	65 dB	70 °C	70 °C	-40 °C	-40 °C	Plastic	48 VDC	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 305.0 CFM (8.54m³/min) 4 Wire Leads
