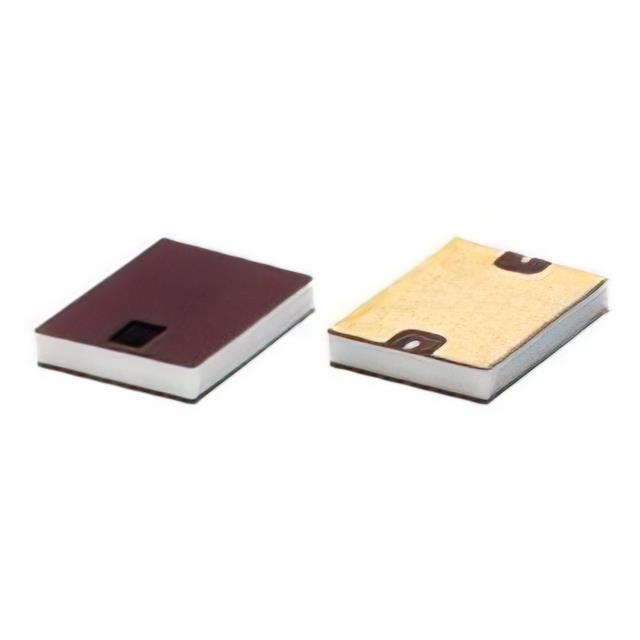

HFCU-1382+
ActiveMINI-CIRCUITS
RF FILTER HI PASS 21.65GHZ 1812
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HFCU-1382+
ActiveMINI-CIRCUITS
RF FILTER HI PASS 21.65GHZ 1812
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HFCU-1382+ |
|---|---|
| Bandwidth | 14.7 GHz |
| Filter Type | High Pass |
| Frequency | 21.65 GHz |
| Height (Max) | 0.87 mm |
| Height (Max) [Max] | 0.034 in |
| Insertion Loss | 3.1 dB |
| Mounting Type | Surface Mount |
| Package / Case [custom] | 1812 |
| Package / Case [custom] | 4532 Metric |
| Package / Case [custom] | 3 PC Pad |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 8.14 | |
Description
General part information
HFCU Series
21.65GHz Center Frequency High Pass RF Filter (Radio Frequency) 14.7GHz Bandwidth 3.1dB 1812 (4532 Metric), 3 PC Pad
