EVB_RT8295AHZSP

Active

Richtek USA Inc.

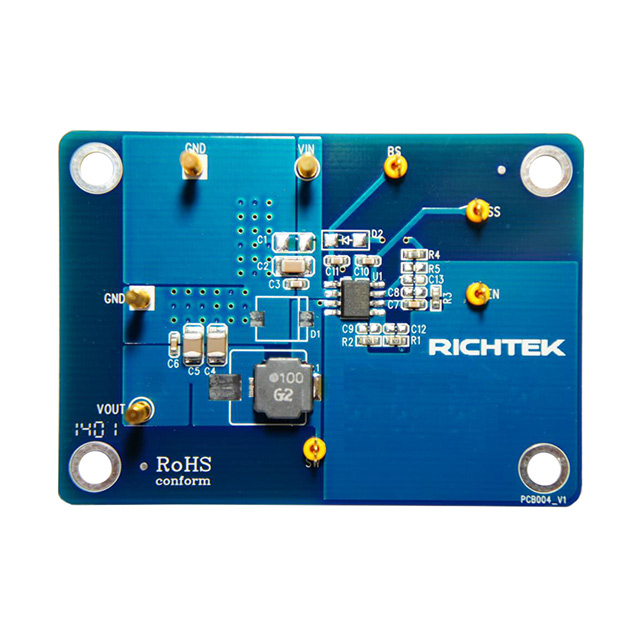

EVAL MODULE FOR RT8295AHZSP

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT8295AHZSP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Frequency - Switching	Voltage - Output (Min/Fixed)	Function	Voltage - Input (Min) [Min]	Current - Output	Package / Case	Package / Case	Package / Case	Number of Outputs	Output Type	Output Configuration	Topology	Supplier Device Package	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplied Contents	Regulator Topology	Voltage - Output	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Board Type
Richtek USA Inc. RT8295AHGSP	23 V	340 kHz	0.8 V	Step-Down	4.5 V	2 A	0.154 in	8-SOIC	3.9 mm	1	Adjustable	Positive	Buck	8-SOP-EP	20 V	85 °C	-40 °C	Surface Mount
Richtek USA Inc. RT8295BLZSP	23 V	1.2 MHz	0.8 V	Step-Down	4.5 V	2 A	0.154 in	8-SOIC	3.9 mm	1	Adjustable	Positive	Buck	8-SOP-EP		85 °C	-40 °C	Surface Mount
Richtek USA Inc. EVB_RT8295AHZSP		340 kHz				2 A													Board(s)	Buck	3.3 V	RT8295A	Non-Isolated	1	23 V	4.5 V	DC/DC Step Down	Fully Populated
Richtek USA Inc. RT8295BHGSP	23 V	1.2 MHz	0.8 V	Step-Down	4.5 V	2 A	0.154 in	8-SOIC	3.9 mm	1	Adjustable	Positive	Buck	8-SOP-EP		85 °C	-40 °C	Surface Mount
Richtek USA Inc. RT8295AHZSP	23 V	340 kHz	0.8 V	Step-Down	4.5 V	2 A	0.154 in	8-SOIC	3.9 mm	1	Adjustable	Positive	Buck	8-SOP-EP	20 V	85 °C	-40 °C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT8295A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
