VND7012AYTR-E

Unknown

STMicroelectronics

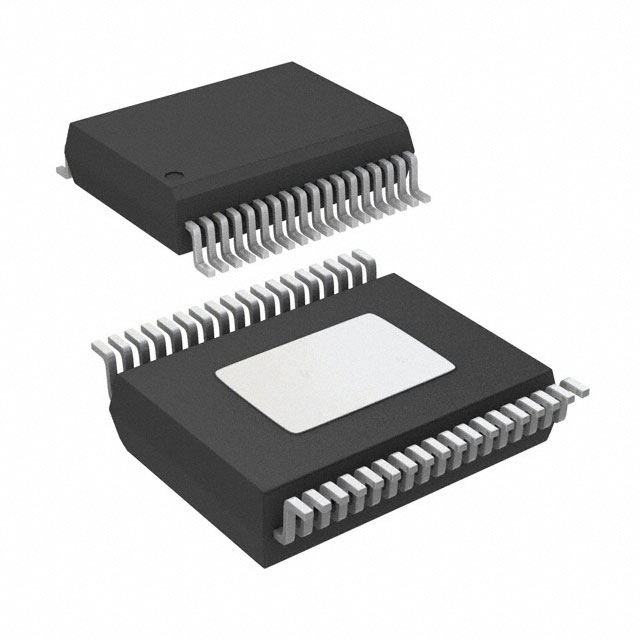

IC PWR DRVR N-CHAN 1:1 PWRSSO36

Search across all available documentation for this part.

Unknown

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO36

Technical Specifications

Parameters and characteristics for this part

Specification	VND7012AYTR-E

Current - Output (Max) [Max]	60 A
Fault Protection	Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage
Features	Status Flag
Grade	Automotive
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	0.295 in
Package / Case	36-PowerBFSOP
Package / Case [x]	7.5 mm
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	12 mOhm
Supplier Device Package	PowerSSO-36 EPD
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	4 V
Voltage - Supply (Vcc/Vdd)	False

Part	Qualification	Switch Type	Current - Output (Max) [Max]	Interface	Supplier Device Package	Number of Outputs	Rds On (Typ)	Mounting Type	Package / Case	Package / Case [x]	Package / Case	Output Type	Output Configuration	Grade	Input Type	Ratio - Input:Output [custom]	Voltage - Load [Min]	Voltage - Load [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Voltage - Supply (Vcc/Vdd)
STMicroelectronics VND7012AYTR-E	AEC-Q100	General Purpose	60 A	On/Off	PowerSSO-36 EPD	2	12 mOhm	Surface Mount	0.295 in	7.5 mm	36-PowerBFSOP	N-Channel	High Side	Automotive	Non-Inverting	1:1	4 V	28 V	Status Flag	150 °C	-40 °C	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 60A PowerSSO-36 EPD
