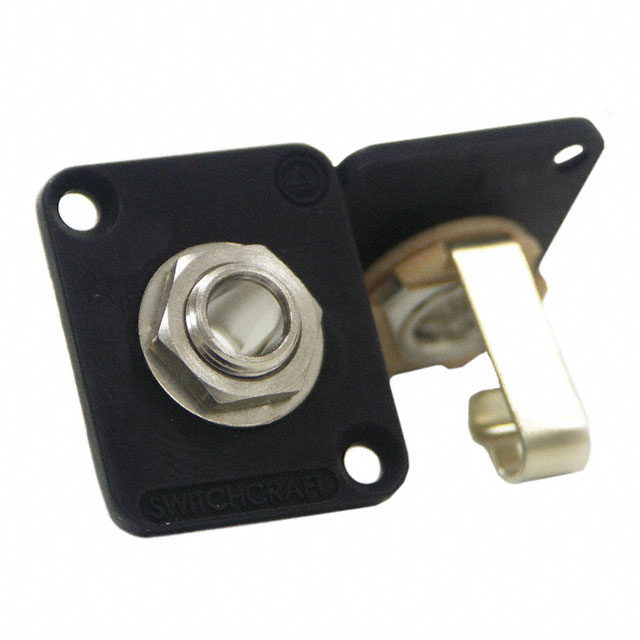

E11B

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	E11B

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Silver, Black
Body Material	Thermoplastic
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Features	Thread Lock, Mounting Hardware
Gender	Female
Housing Material	Zinc Die Cast
Includes	1 Connector, 1 Nut, 1 Washer, 1 Flange
Internal Switch(s)	False
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Panel Hole Size [diameter]	24 mm
Panel Hole Size [diameter]	0.945 in
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

Part	Body Color	Housing Material	Signal Lines	Shielding	Termination	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Connector Type	Features	Contact Material	Contact Material - Plating [custom]	Body Material	Includes	Gender	Internal Switch(s)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Current Rating (Amps)	Voltage - Rated [custom]	Contact Material - Plating	Panel Hole Size	Panel Hole Size
Switchcraft Inc. E11B	Black Silver	Zinc Die Cast	Mono	Unshielded	Solder Eyelet(s)	24 mm	0.945 in	Phone Jack	Mounting Hardware Thread Lock	Brass	Nickel	Thermoplastic	1 Connector 1 Flange 1 Nut 1 Washer	Female		2	2	0.25 in	6.35 mm
Switchcraft Inc. E112BL	Black Silver	Zinc Die Cast	Stereo	Unshielded	Solder Eyelet(s)			Phone Jack	Flange Lock	Copper Alloy		Thermoplastic		Female		3	3	0.253 "	6.43 mm	0.25 A	48 VDC	Tin	0.937 "	23.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.20

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s)
