R150A1-051-D0760

Obsolete

NMB TECHNOLOGIES

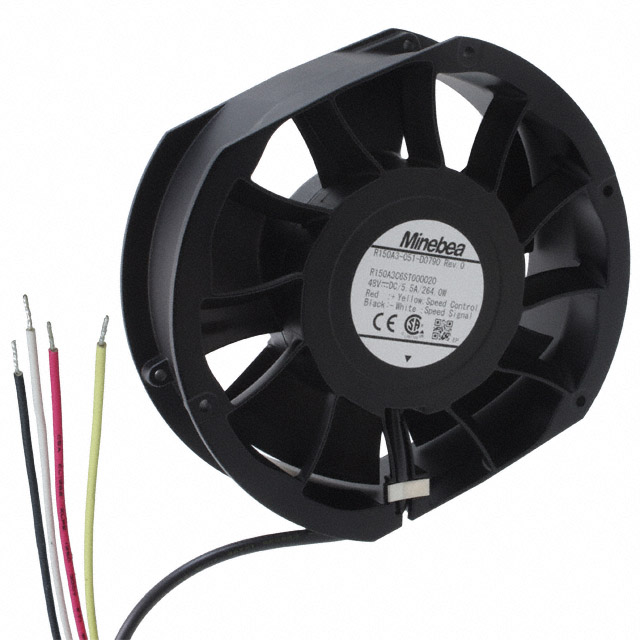

FAN AXIAL 172.7X50MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172.7X50MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	R150A1-051-D0760

Air Flow	365 CFM
Air Flow	10.22 m³/min
Bearing Type	Ball
Current Rating (Amps)	1.5 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	73 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	72 W
RPM	6300 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172.7 mm
Size / Dimension [z]	150 mm
Static Pressure	3.485 in H2O
Static Pressure	868.1 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	30 VDC
Weight	1 kg
Weight	2.3 lbs
Width [x]	50 mm

Part	Air Flow	Air Flow	Lifetime @ Temp.	Voltage - Rated [custom]	Material - Blade	Termination	Fan Type	Noise	Width [x]	Features	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Bearing Type	Weight	Weight	Static Pressure	Static Pressure	RPM	Power (Watts)	Current Rating (Amps)	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Voltage Range [Min]	Voltage Range [Max]
NMB TECHNOLOGIES R150A1-051-D0760	365 CFM	10.22 m³/min	70000 Hrs	48 VDC	Plastic	4 Wire Leads	Tubeaxial	73 dB(A)	50 mm	PWM Control Speed Sensor (Tach)	-30 °C	-22 °F	70 °C	158 °F	Ball	1 kg	2.3 lbs	3.485 in H2O	868.1 Pa	6300 RPM	72 W	1.5 A	Rectangular/Rounded	150 mm	172.7 mm	Aluminum	30 VDC	72 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172.7mm L x 150mm H Ball 365.0 CFM (10.22m³/min) 4 Wire Leads
