K20F1C-P09LCC0-400S
ActiveODU

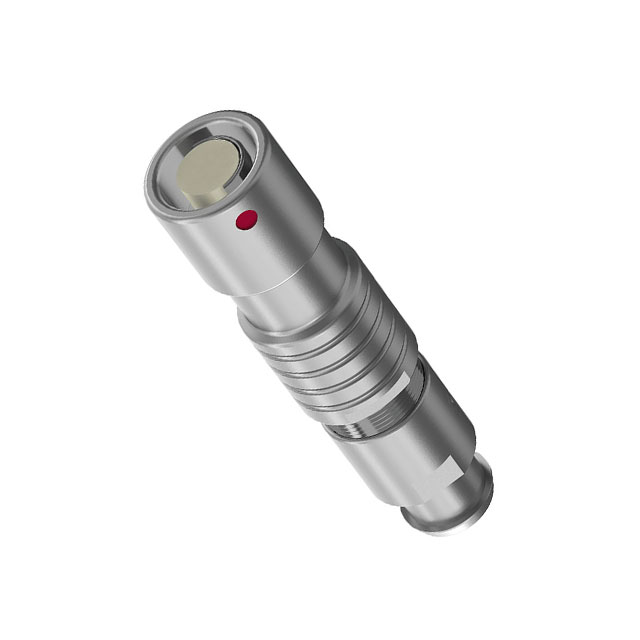

CONN RCPT FMALE 9P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
K20F1C-P09LCC0-400S
ActiveODU
CONN RCPT FMALE 9P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K20F1C-P09LCC0-400S |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Cable Opening [Max] [diameter] | 0.157 in |
| Cable Opening [Max] [diameter] | 4 mm |
| Cable Opening [Min] [diameter] | 0.138 in |
| Cable Opening [Min] [diameter] | 3.5 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 1 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
K20F1C-P Series
| Part | Current Rating (Amps) | Color | Primary Material | Applications | Fastening Type | Mounting Type | Backshell Material, Plating | Number of Positions | Contact Finish - Mating | Shell Size - Insert | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Orientation | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Ingress Protection | Shielding | Shell Material | Insert Material | Contact Material | Material Flammability Rating | Voltage Rating | Features | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | 0.098 in | 2 mm | 0.079 in | 2.5 mm | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 300 VDC | Backshell Strain Relief | |||||||||
7.5 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 200 V | Backshell Strain Relief | 0.118 in | 0.098 in | 3 mm | 2.5 mm | ||||||||||
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 300 VDC | Backshell Strain Relief | 0.138 in | 0.118 in | 3 mm | 3.5 mm | |||||||||
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 9 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | 0.098 in | 2 mm | 0.079 in | 2.5 mm | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 300 VDC | Backshell Strain Relief | |||||||||
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 9 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | IP50 | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | Backshell Strain Relief | 0.157 in | 0.138 in | 3.5 mm | 4 mm | |||||||||||
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 9 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 300 VDC | Backshell Strain Relief | 0.039 in 0.059 in | 1 mm 1.5 mm | |||||||||||
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | 0.079 in | 1.5 mm | 0.059 in | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 300 VDC | Backshell Strain Relief | 2 mm | |||||||||
4 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | 7 | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 300 VDC | Backshell Strain Relief | 0.157 in | 0.138 in | 3.5 mm | 4 mm | |||||||||
7.5 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 200 V | Backshell Strain Relief | 0.138 in | 0.118 in | 3 mm | 3.5 mm | ||||||||||
7.5 A | Silver | Metal | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Free Hanging (In-Line) | Brass Chrome over Nickel | Gold | 0 | Chrome over Nickel | -40 °C | 120 °C | Receptacle Female Sockets | 1 | 0.079 in | 1.5 mm | 0.059 in | IP50 | Unshielded | Brass | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | 200 V | Backshell Strain Relief | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.11 | |
| 10 | $ 28.65 | |||
Description
General part information
K20F1C-P Series
9 Position Circular Connector Receptacle, Female Sockets Solder Cup
