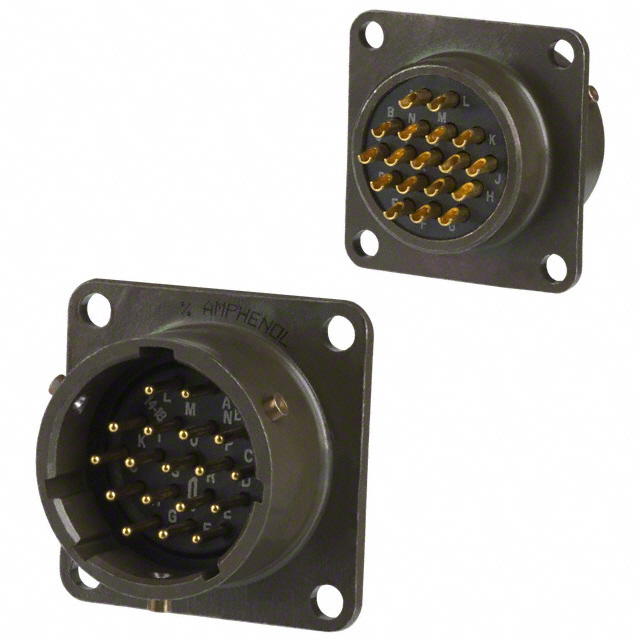

MS3112E-14-18P

Active

Amphenol Industrial Operations

CONN RCPT MALE 18P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3112E-14-18P

Active

Amphenol Industrial Operations

CONN RCPT MALE 18P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E-14-18P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	14
Shielding	Unshielded

MS3112E14 Series

Part	Grade	Shell Material	Shell Finish	Insert Material	Orientation	Qualification	Connector Type	Fastening Type	Contact Material	Color	Applications	Number of Positions	Shielding	Ingress Protection	Contact Finish - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert
Amphenol Industrial Operations MS3112E-14-18P	Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	N	MIL-DTL-26482 Series I	Male Pins Receptacle	Bayonet Lock	Copper Alloy	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	18	Unshielded	Environment Resistant	Gold	Metal	-55 °C	125 °C	Flange	14	18
Amphenol Industrial Operations MS3112E14-19PX	Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	X	MIL-DTL-26482 Series I	Male Pins Receptacle	Bayonet Lock	Copper Alloy	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	19	Unshielded	Environment Resistant	Gold	Metal	-55 °C	125 °C	Flange			19	14
Amphenol Industrial Operations MS3112E14-18S	Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	N	MIL-DTL-26482 Series I	Receptacle Female Sockets	Bayonet Lock	Copper Alloy	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	18	Unshielded	Environment Resistant	Gold	Metal	-55 °C	125 °C	Flange	14	18
Amphenol Industrial Operations MS3112E14-15PX
Amphenol Industrial Operations MS3112E14-19P
Amphenol Industrial Operations MS3112E14-19P W/P CAP
Amphenol Industrial Operations MS3112E14-19PY	Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	Y	MIL-DTL-26482 Series I	Male Pins Receptacle	Bayonet Lock	Copper Alloy	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	19	Unshielded	Environment Resistant	Gold	Metal	-55 °C	125 °C	Flange			19	14
Amphenol Industrial Operations MS3112E14-5PW	Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	W	MIL-DTL-26482 Series I	Male Pins Receptacle	Bayonet Lock	Copper Alloy	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military		Unshielded	Environment Resistant	Gold	Metal	-55 °C	125 °C	Flange					14-5
Amphenol Industrial Operations MS3112E14-15SX
Amphenol Industrial Operations MS3112E14-5SW	Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	W	MIL-DTL-26482 Series I	Receptacle Female Sockets	Bayonet Lock	Copper Alloy	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military		Unshielded	Environment Resistant	Gold	Metal	-55 °C	125 °C	Flange					14-5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.00
		10	$ 23.37
		25	$ 21.12
		50	$ 16.88
		250	$ 16.57
		500	$ 16.16
		1000	$ 15.76

Description

General part information

MS3112E14 Series

18 Position Circular Connector Receptacle, Male Pins Solder Cup
