TR9CX3333T00-IM(R6B)

Active

GlobTek, Inc.

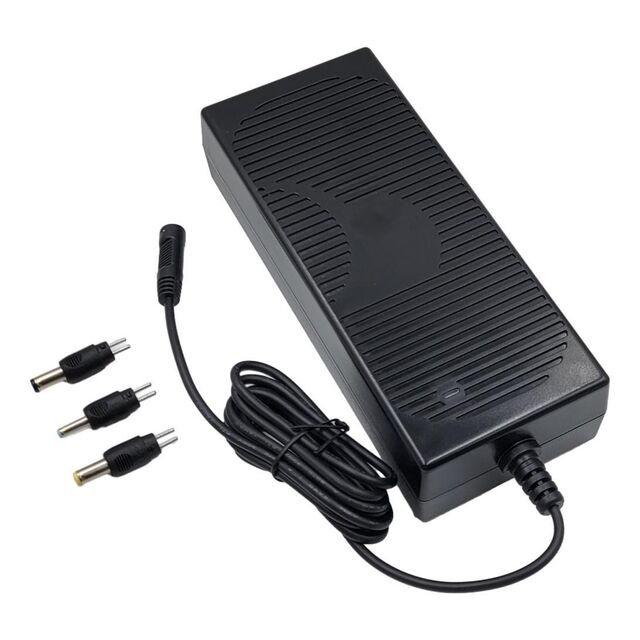

AC/DC DESKTOP ADAPTER 54V 180W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 54V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CX3333T00-IM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.33 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Polarization	Either
Power (Watts)	180 W
Region Utilized	International
Size / Dimension [x]	6.95 in
Size / Dimension [x]	176.5 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	54 V

Part	Standard Number	Power (Watts)	Cord Length	Cord Length	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	No Load Power Consumption [Max]	Voltage - Output	Region Utilized	Polarization	Input Type	Efficiency	Form	Input Connector	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector
GlobTek, Inc. TR9CX3333T00-IM(R6B)	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	180 W	1.5 m	59 in	3.33 A	90 VAC	264 VAC	1.3mm x 3.5mm Barrel Plug Kit	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	150 mW	54 V	International	Either	Cord	CoC Tier 2 Level VI	Desktop (Class I)	IEC 320-C14	Household Appliances ITE (Commercial) Medical	-10 °C	40 °C
GlobTek, Inc. TR9CX3333T00-IMCF(R6B)	60335-1 60601-1 60950-1 62368-1	180 W	1.5 m	59 in	3.33 A	90 VAC	264 VAC	1.3mm x 3.5mm Barrel Plug Kit	6.93 in	1.58 "	40 mm	2.91 "	74 mm	176 mm	150 mW	54 V	International		Cord	CoC Tier 1 Level VI	Desktop (Class I)	IEC 320-C14	Household Appliances ITE (Commercial) Medical	-10 °C	40 °C
GlobTek, Inc. TR9CX3333YL4IMR6B	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	180 W	1.5 m	59 in	3.33 A	90 VAC	264 VAC	Power DIN	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	150 mW	54 V	International		Cord	CoC Tier 2 Level VI	Desktop (Class I)	IEC 320-C14	Household Appliances ITE (Commercial) Medical	-10 °C	40 °C	4 Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
