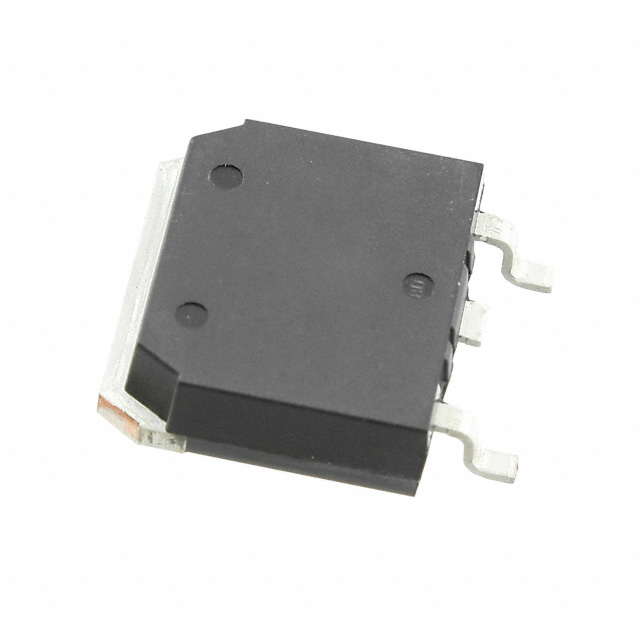

IXBT12N300

NRND

IXYS

IGBT 3000V 30A TO268AA

Search across all available documentation for this part.

NRND

IXYS

IGBT 3000V 30A TO268AA

Technical Specifications

Parameters and characteristics for this part

Specification	IXBT12N300

Current - Collector (Ic) (Max) [Max]	30 A
Current - Collector Pulsed (Icm)	100 A
Gate Charge	62 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Power - Max [Max]	160 W
Reverse Recovery Time (trr)	1.4 µs
Supplier Device Package	TO-268AA
Vce(on) (Max) @ Vge, Ic	3.2 V

Part	Current - Collector (Ic) (Max) [Max]	Reverse Recovery Time (trr)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Pulsed (Icm)	Supplier Device Package	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Gate Charge	Mounting Type	Td (on/off) @ 25°C	Test Condition
IXYS IXBT12N300	30 A	1.4 µs	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	-55 °C	150 °C	100 A	TO-268AA	160 W	3.2 V	62 nC	Surface Mount
IXYS IXBT12N300HV	30 A	1.4 µs	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	-55 °C	150 °C	100 A	TO-268HV	160 W	3.2 V	62 nC	Surface Mount	64 ns 180 ns	10 Ohm 12 A 15 V 1250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 21.33

General part information

IGBT 3000 V 30 A 160 W Surface Mount TO-268AA
