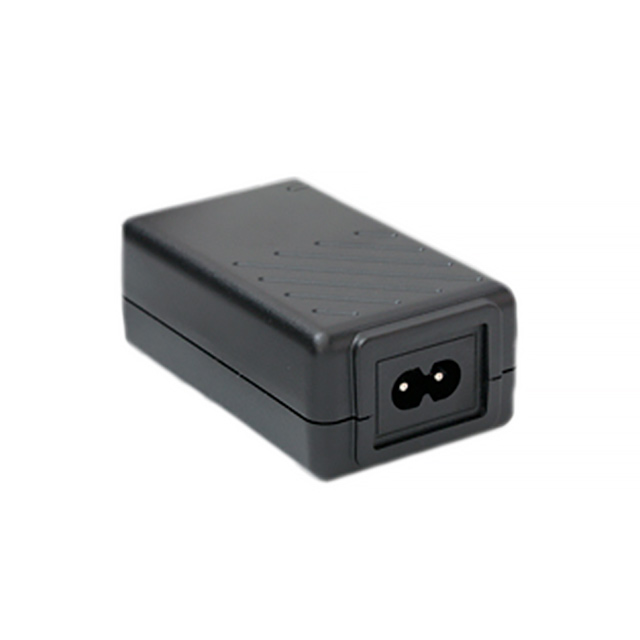

FWA020024A-10A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 20W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Input Connector	Voltage - Output	No Load Power Consumption	Polarization	Weight	Weight	Region Utilized	Applications	Form	Current - Output (Max) [Max]	Approval Agency	Cord Length	Cord Length	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Input Type
Inventus Power FWA020024A-10A	IEC 320-C6	24 V	300 mW	Positive Center	136.08 g	0.3 lb	International	ITE (Commercial)	Desktop (Class I)	840 mA	CB CE GS TUV	1.22 m	48 in	20 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "	60 °C	0 °C	Level VI	Cord
Inventus Power FWA020024B-10A	IEC 320-C8	24 V	300 mW	Positive Center	136.08 g	0.3 lb	International	ITE (Commercial)	Desktop (Class II)	840 mA	CB CE cTUVus	1.22 m	48 in	20 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "	60 °C	0 °C	Level VI	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 20 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
