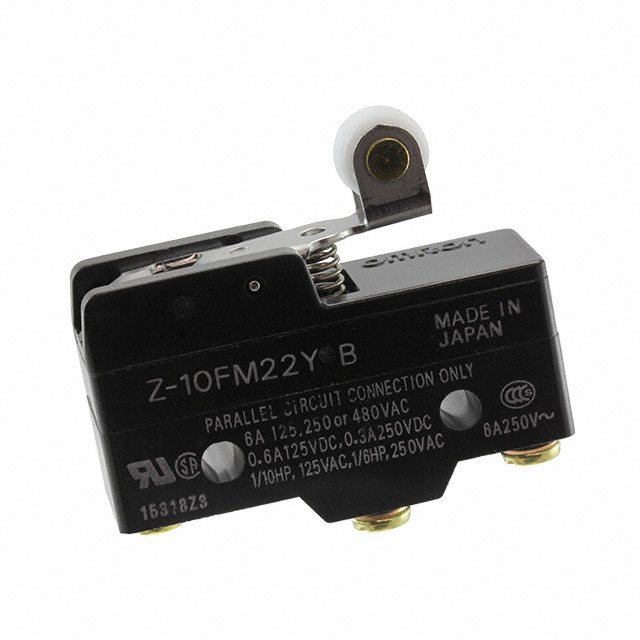

Z-10FM22Y-B
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
Z-10FM22Y-B
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z-10FM22Y-B |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT (DB/DM) |
| Current Rating (Amps) | 10 A |
| Differential Travel | 0.022 in |
| Differential Travel | 0.56 mm |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP00 |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 650 gf |
| Operating Position | 29.4 mm |
| Operating Position | 1.156 " |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 2 mm |
| Overtravel | 0.079 in |
| Release Force | 170 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.32 | |
| 10 | $ 37.03 | |||
| 25 | $ 33.85 | |||
| 50 | $ 31.74 | |||
| 100 | $ 30.15 | |||
| 250 | $ 29.09 | |||
Description
General part information
Z-10FM22 Series
Switch SPDT (DB/DM) Chassis Mount
Documents
Technical documentation and resources
No documents available
