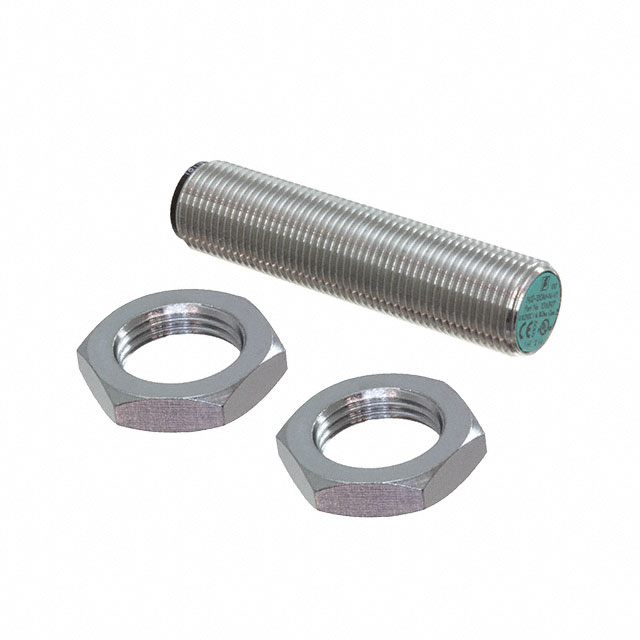

NJ2-12GM-N-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NJ2-12GM-N-V1

Indicator [custom]	No Indicator
Ingress Protection	IP67
Material - Body	Stainless Steel
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply	8.2 V

Part	Package / Case	Sensor Type	Operating Temperature [custom]	Ingress Protection	Shielding	Termination Style	Sensing Distance	Sensing Distance	Voltage - Supply	Indicator [custom]	Material - Body	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]
PEPPERL+FUCHS NJ2-12GK-N	Cylinder Threaded - M12	Inductive	-25 °C 100 °C	IP66 IP68	Unshielded	Cable	0.079 in	2 mm	8.2 V	No Indicator	Polybutylene Terephthalate (PBT)	SCR-NC 2-Wire
PEPPERL+FUCHS NJ2-12GM-N-V1	Cylinder Threaded - M12	Inductive	-25 °C 100 °C	IP67	Unshielded	Connector	0.079 in	2 mm	8.2 V	No Indicator	Stainless Steel	SCR-NC 2-Wire
PEPPERL+FUCHS NJ2-12GM-N	Cylinder Threaded - M12	Inductive	-25 °C 100 °C	IP66 IP67	Unshielded	Cable	0.079 in	2 mm	8.2 V	No Indicator	Stainless Steel	SCR-NC 2-Wire
PEPPERL+FUCHS NJ2-12GM40-E2-V1	Cylinder Threaded - M12	Inductive		IP67	Unshielded	Connector	0.079 in	2 mm		LED	Stainless Steel	PNP-NO 3-Wire	10 VDC	60 V	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 2MM NAMUR
