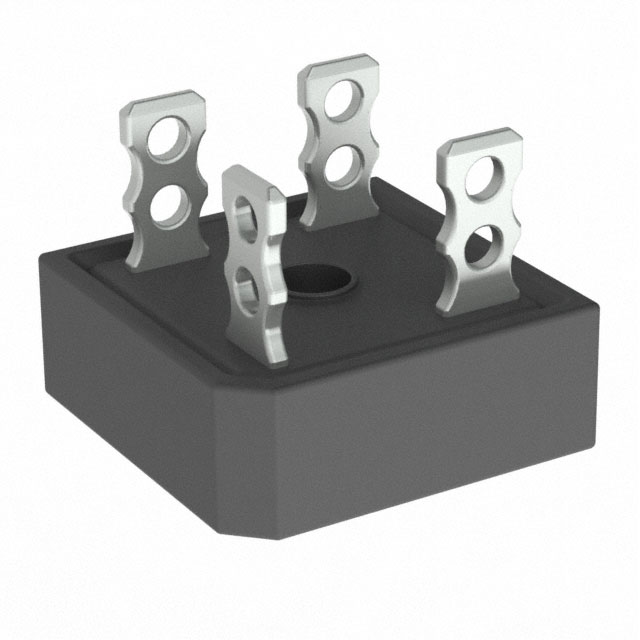

GBPC3510 T0G

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 1KV 35A GBPC

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 1KV 35A GBPC

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC3510 T0G

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, GBPC
Supplier Device Package	GBPC
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Diode Type	Technology	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type
Taiwan Semiconductor Corporation GBPC3510W	Single Phase	Standard	1000 V	1.1 V	5 µA	4-Square GBPC-W	35 A	-55 °C	150 °C	GBPC-W	Through Hole
Taiwan Semiconductor Corporation GBPC3510 T0G	Single Phase	Standard	1000 V	1.1 V	5 µA	4-Square GBPC	35 A	-55 °C	150 °C	GBPC	QC Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 1 kV QC Terminal GBPC
