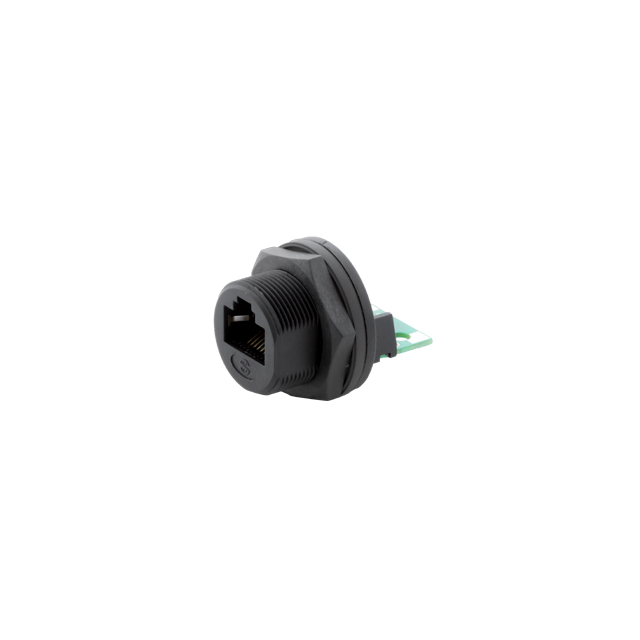

IPMOD-45FSP

Active

Sure-Seal Legacy

JACK, PNL RJ45 WS / PCB

Deep-Dive with AI

DocumentsRJ45 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPMOD-45FSP

Connector Type	Jack
Contact Finish	Gold
Contact Material	Copper Alloy
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat6a
Shielding	Unshielded
Tab Direction	User Selectable

IPM Series

Part	Ratings	Contact Material	Connector Type	Voltage Rating	Number of Positions/Contacts	Ingress Protection	Termination	Contact Finish	Current Rating (Amps)	Shielding	Features	Color	Style	Cable Type	Length [x]	Length [x]	Mounting Type	Assembly Configuration	1st Connector Mounting Type	Usage	1st Connector Shell Size - Insert	1st Connector Orientation	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Gender	2nd Connector Type	1st Connector Number of Positions	Cable Material	Applications	Shell Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Contact Finish - Mating	Shell Size - Insert	Number of Positions	Primary Material	Mounting Feature	Shell Finish	Length	Length	Tab Direction	Number of Ports	Housing Material	Number of Rows	LED Color	Accessory Type	For Use With/Related Products	Material
Sure-Seal Legacy IPMOD-45WM-FT	Cat5e	Copper Alloy	Plug	48 VDC	8p8c (RJ45 Ethernet)	IP67 - Dust Tight Waterproof	IDC	Gold	1 A	Shielded	Circular Bayonet Coupling
Sure-Seal Legacy IPMOD-45WPWP-3M			Plug to Plug		8p8c (RJ45 Ethernet)					Unshielded	Circular Threaded Coupling Molded Plugs	Black	Cat5e Industrial Environments - IP67	Round Cable	9.84 ft	3 m	Bulkhead Panel Mount
Sure-Seal Legacy IPM-M5A4F-FL												Black		Round	1.64 ft	500 mm		Standard	Free Hanging (In-Line)	Industrial Environments	M5	A	Plug	All	Female Sockets	Wire Leads	4	Polyurethane (PUR)
Sure-Seal Legacy IPMOD-45WPWP-1M			Plug to Plug		8p8c (RJ45 Ethernet)					Unshielded	Circular Threaded Coupling Molded Plugs	Black	Cat5e Industrial Environments - IP67	Round Cable	3.28 ft	1 m	Bulkhead Panel Mount
Sure-Seal Legacy IPM8-A4M-PC		Brass	Male Pins Receptacle	30 VAC		IP67 - Dust Tight Waterproof	Solder		3 A	Unshielded		Silver					Panel Mount Through Hole												Industrial	Brass	A	90 °C	-25 °C	Thermoplastic Polyurethane (TPU)	Gold	M8-4	4	Metal	Bulkhead - Front Side Nut	Nickel
Sure-Seal Legacy IPM-M5A4-MRA-WL-1.5U						IP67 - Dust Tight Waterproof				Unshielded		Black		Round				Standard	Free Hanging (In-Line)	Industrial Environments	M5	A	Receptacle	All	Male Pins	Wire Leads	4	Polyurethane (PUR)													4.92 '	1.5 m
Sure-Seal Legacy IPMOD-45FSP	Cat6a	Copper Alloy	Jack		8p8c (RJ45 Ethernet)	IP68 - Dust Tight Waterproof		Gold		Unshielded							Bulkhead Panel Mount														Straight	105 ░C	-40 °C										User Selectable	1	Polyamide (PA) Nylon Glass Filled	1	Does Not Contain LED
Sure-Seal Legacy IPM8-A4-FRA-WL-1.5U						IP67 - Dust Tight Waterproof				Unshielded		Black		Round				Standard	Free Hanging (In-Line)	Industrial Environments	M8	A	Plug Right Angle	All	Female Sockets	Wire Leads	4	Polyurethane (PUR)													4.92 '	1.5 m
Sure-Seal Legacy IPMOD-45WPP-1M			Plug to Plug		8p8c (RJ45 Ethernet)					Unshielded	Circular Threaded Coupling Molded Plugs	Black	Cat5e Industrial Environments - IP67	Round Cable	3.28 ft	1 m	Bulkhead Panel Mount
Sure-Seal Legacy IPM12-CAP-M-CA											Contains Strap Dust Tight Internal Threads Waterproof	Black																								M12												Cap (Cover) Protective	M12 Male Connector	Glass Filled Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.50
		10	$ 19.40
		25	$ 15.63
		50	$ 15.55
		100	$ 14.62
		250	$ 13.87
		500	$ 13.53

Description

General part information

IPM Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat6a
