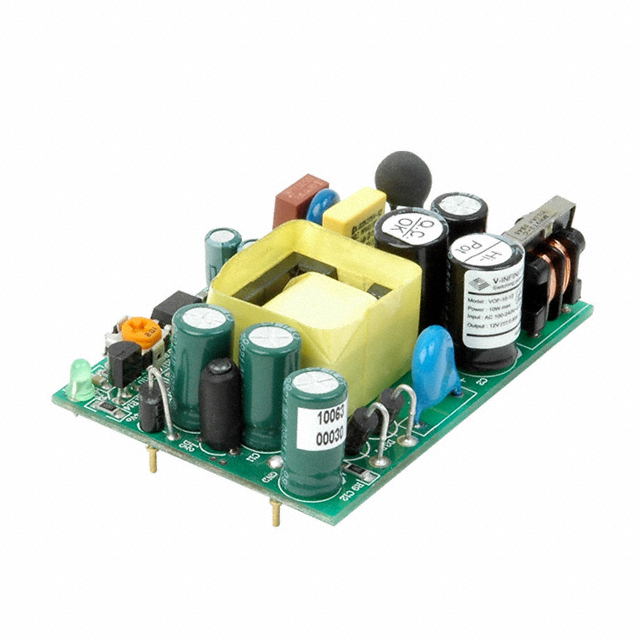

VOF-10-3.3

Obsolete

CUI Inc.

AC/DC CONVERTER 3.3V 10W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 3.3V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Mounting Type	Operating Temperature [Max]	Approval Agency	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Applications	Standard Number	Current - Output (Max) [Max]	Number of Outputs	Load Regulation	Package / Case	Line Regulation	Voltage - Output 1	Features
CUI Inc. VOF-10-3.3	70 %	Through Hole	60 °C	CB Scheme EN IEC SIQ TUV UL	10 W	1.77 "	65 mm	2.56 in	0.91 in	45 mm	23.1 mm	Open Frame	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3	2.4 A	1	1.2 %	4-DIP Module	0.6 %	3.3 V	Universal Input
CUI Inc. VOF-10-5	75 %	Through Hole	60 °C	CB Scheme EN IEC SIQ TUV UL	10 W	1.77 "	65 mm	2.56 in	0.91 in	45 mm	23.1 mm	Open Frame	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3	2 A	1	1 %	4-DIP Module	0.5 %	5 V	Universal Input
CUI Inc. VOF-10-24	78 %	Through Hole	60 °C	CB Scheme EN IEC SIQ TUV UL	10 W	1.77 "	65 mm	2.56 in	0.91 in	45 mm	23.1 mm	Open Frame	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3	420 mA	1	1 %	4-DIP Module	0.5 %	24 V	Universal Input
CUI Inc. VOF-10-12	75 %	Through Hole	60 °C	CB Scheme EN IEC SIQ TUV UL	10 W	1.77 "	65 mm	2.56 in	0.91 in	45 mm	23.1 mm	Open Frame	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3	830 mA	1	1 %	4-DIP Module	0.5 %	12 V	Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 3.3V 2.4A 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
