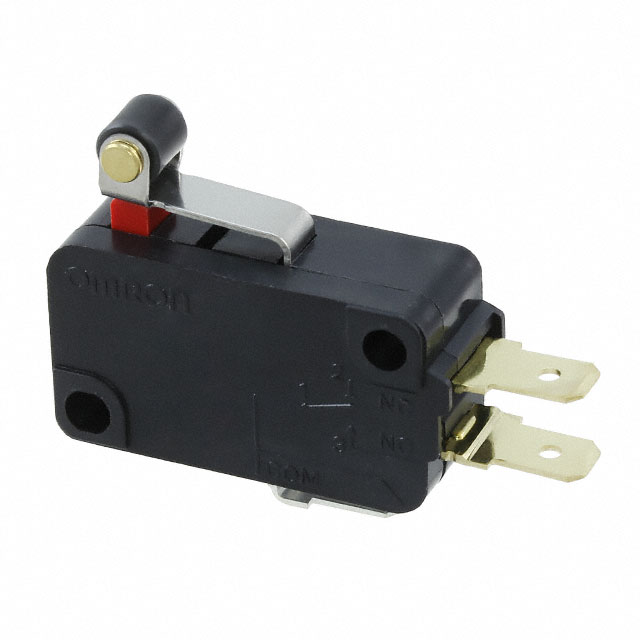

V-165-1C25

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 16A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 16A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination Style	Termination Style	Voltage Rating - DC	Electrical Life	Circuit	Differential Travel	Differential Travel	Operating Force	Current Rating (Amps)	Pretravel	Pretravel	Operating Position	Operating Position	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Type	Ingress Protection	Release Force	Voltage Rating - AC	Switch Function	Features
Omron Electronics Inc-EMC Div V-165-1A5	Chassis Mount	Quick Connect Solder	0.187 in 4.7 mm	125 VDC	100000 Cycles	SPDT	0.6 mm	0.025 in	240 gf	16 A 600 mA	0.063 in	1.6 mm	20.7 mm	0.815 in	0.76 mm	0.03 in	-25 °C	80 C	50000000 Cycles	Lever Roller	IP40	50 gf	250 V	On-Mom
Omron Electronics Inc-EMC Div V-165-1C25	Chassis Mount	Quick Connect - 0.187" (4.7mm)		125 VDC	100000 Cycles	SPDT	0.6 mm	0.025 in	240 gf	16 A 600 mA	0.063 in	1.6 mm	20.7 mm	0.815 in	0.76 mm	0.03 in	-25 °C	80 C	50000000 Cycles	Lever Roller	IP40	50 gf	250 V	On-Mom
Omron Electronics Inc-EMC Div V-165-1A6	Chassis Mount	Quick Connect Solder	0.187 in 4.7 mm	125 VDC	100000 Cycles	SPDT	0.6 mm	0.025 in	480 gf	16 A 600 mA	0.063 in	1.6 mm	20.7 mm	0.815 in	0.76 mm	0.03 in	-25 °C	80 C	50000000 Cycles	Lever Roller	IP40	50 gf	250 V	On-Mom
Omron Electronics Inc-EMC Div V-165-1AR5	Chassis Mount	Quick Connect Solder	0.187 in 4.7 mm	125 VDC	100000 Cycles	SPDT	0.6 mm	0.025 in	240 gf	16 A 600 mA	0.063 in	1.6 mm	20.7 mm	0.815 in	0.76 mm	0.03 in	-25 °C	80 C	50000000 Cycles	Lever Roller	IP40	50 gf	250 V	On-Mom	Insulation Barrier
