342-102-559-208

Active

EDAC Inc.

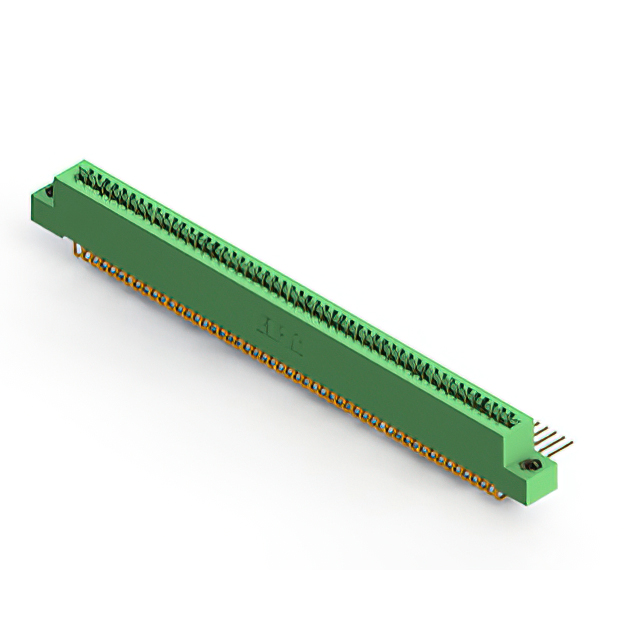

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 102 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

342-102-559-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 102 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-102-559-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	102
Number of Positions/Bay/Row [custom]	51
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

342-102 Series

Part	Mounting Type	Number of Positions/Bay/Row [custom]	Read Out	Contact Finish	Contact Material	Material - Insulation	Color	Termination	Pitch [x]	Pitch [x]	Card Type	Contact Type	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Features
EDAC Inc. 342-102-542-212	Through Hole	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	-40 °C	105 ░C
EDAC Inc. 342-102-556-207	Board Edge Straddle Mount	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		Female	-40 °C	105 ░C	Card Extender
EDAC Inc. 342-102-559-208	Through Hole Right Angle	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		Female	-40 °C	105 ░C
EDAC Inc. 342-102-559-203	Through Hole Right Angle	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Female	-40 °C	105 ░C
EDAC Inc. 342-102-540-207	Through Hole	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		Female	-40 °C	105 ░C
EDAC Inc. 342-102-520-203	Through Hole	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Female	-40 °C	105 ░C
EDAC Inc. 342-102-540-203	Through Hole	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Female	-40 °C	105 ░C
EDAC Inc. 342-102-523-202	Through Hole	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Female	-40 °C	105 ░C
EDAC Inc. 342-102-523-201	Through Hole	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám				Female	-40 °C	105 ░C
EDAC Inc. 342-102-559-204	Through Hole Right Angle	51	Dual	Gold	Copper Alloy	Polyester Thermoplastic	Green	Solder Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	2	1.37 mm	0.054 "	1.78 mm	0.07 in	102	2	10 Áin	0.25 Ám	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Female	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.76
Newark	Each	1	$ 22.07
		100	$ 16.54
		250	$ 14.37
		500	$ 12.46
		1000	$ 9.17

Description

General part information

342-102 Series

102 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
