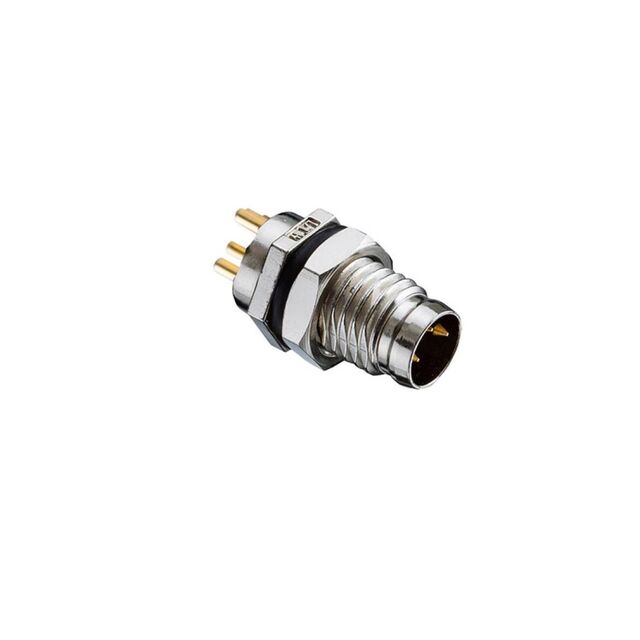

8H-05PMMS-SF7001

Active

Amphenol LTW

M8 CONN WITH KEY

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN WITH KEY

Technical Specifications

Parameters and characteristics for this part

Specification	8H-05PMMS-SF7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A, 1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-5
Shielding	Shielded
Voltage Rating	30 VDC

Part	Shielding	Voltage Rating	Color	Contact Finish - Mating	Insert Material	Mounting Feature	Current Rating (Amps)	Contact Material	Shell Material	Orientation	Shell Size - Insert	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Primary Material
Amphenol LTW 8H-05PMMS-SF7001	Shielded	30 VDC	Silver	Gold	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	1.5 A 3 A	Copper Alloy	Zinc Alloy	Keyed	M8-5	Male Pins Receptacle	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Nickel	Metal
Amphenol LTW 8H-05PMMS-SH7001	Shielded	30 VDC	Silver	Gold	Polyamide (PA) Nylon Glass Filled	Bulkhead - Rear Side Nut	1.5 A 3 A	Copper Alloy	Zinc Alloy	Keyed	M8-5	Male Pins Receptacle	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Nickel	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
