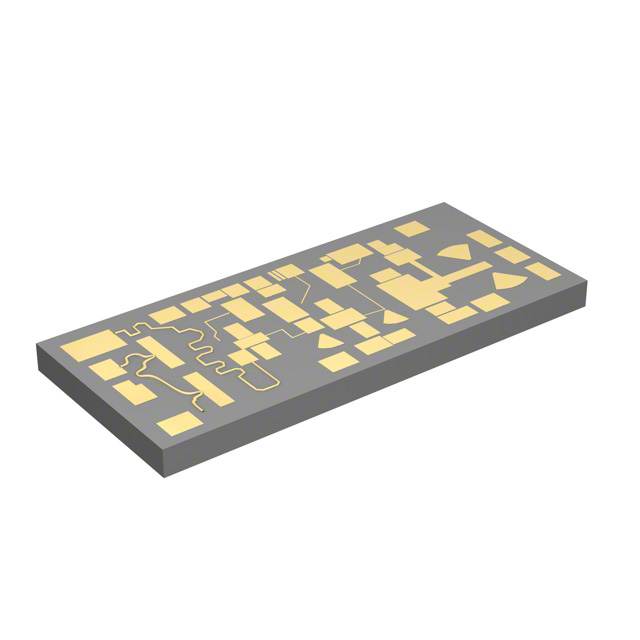

AMMC-5040-W10
ObsoleteBroadcom Limited
IC RF AMP 20GHZ-45GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
AMMC-5040-W10
ObsoleteBroadcom Limited
IC RF AMP 20GHZ-45GHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMMC-5040-W10 |
|---|---|
| Current - Supply | 225 mA |
| Frequency [Max] | 45 GHz |
| Frequency [Min] | 20 GHz |
| Gain | 25 dB |
| Mounting Type | Surface Mount |
| P1dB | 22.5 dBm |
| Package / Case | Module |
| Supplier Device Package | Module |
| Test Frequency [Max] | 29 GHz |
| Test Frequency [Min] | 27 GHz |
| Voltage - Supply | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMMC-5040 Series
RF Amplifier IC 20GHz ~ 45GHz Module
Documents
Technical documentation and resources
No documents available
