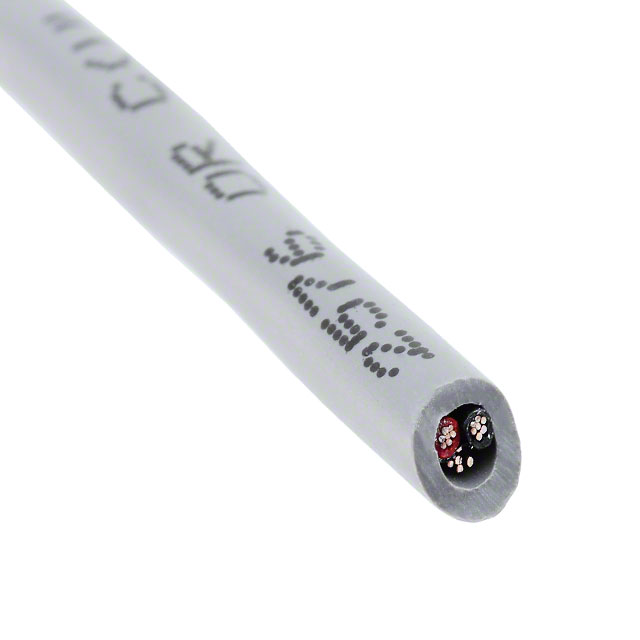

2211C SL005

Active

ALPHA WIRE

CABLE 2CON 22AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2CON 22AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	2211C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Features	Shield Material	Conductor Insulation	Cable Type	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Usage	Number of Conductors
ALPHA WIRE 2211C SL005	Foil	Slate	4.27 mm	0.168 in	150 V	Drain Wire	Aluminum	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Poly-Vinyl Chloride (PVC)	22 AWG	Copper Tinned	30.5 m	100 ft	-20 C	80 C	7	30 AWG	100 %	Communication Control	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Slate 22 AWG Foil 100.0' (30.5m)
