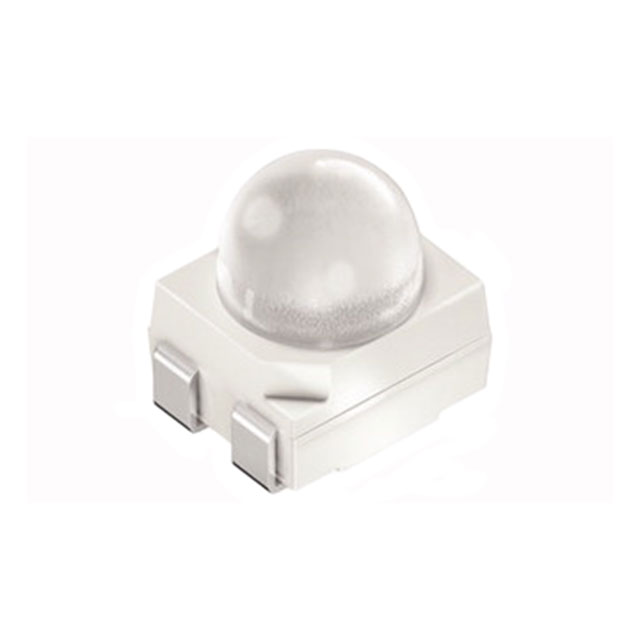

SFH 4259S
Activeams-OSRAM USA INC.
EMITTER IR 860NM 100MA PLCC
Deep-Dive with AI
Search across all available documentation for this part.
SFH 4259S
Activeams-OSRAM USA INC.
EMITTER IR 860NM 100MA PLCC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4259S |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 4-PLCC |
| Radiant Intensity (Ie) Min @ If [Min] | 85 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.10 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.52 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 10 | $ 0.70 | |||
| 100 | $ 0.52 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.39 | |||
| Tape & Reel (TR) | 2000 | $ 0.37 | ||
| 6000 | $ 0.36 | |||
| 10000 | $ 0.35 | |||
Description
General part information
SFH4259 Series
Infrared (IR) Emitter 860nm 3.1V 100mA 85mW/sr @ 100mA 50° 4-PLCC
