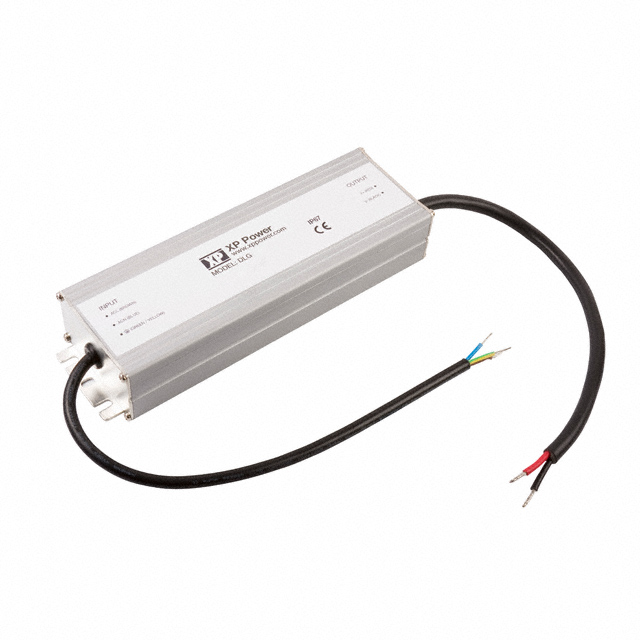

DLG70PS700-A

Obsolete

XP POWER

LED DRIVER CC AC/DC 50-100V

Search across all available documentation for this part.

Obsolete

XP POWER

LED DRIVER CC AC/DC 50-100V

Technical Specifications

Parameters and characteristics for this part

Part	Type	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Input (Min) [Min]	Number of Outputs	Ratings	Current - Output (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Topology	Mounting Type	Weight	Weight	Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation	Features
XP POWER DLG70PS700-A	Constant Current	CE UL	70 W	70 °C	-30 ░C	Wire Leads	90 VAC	1	IP67	700 mA	50 V	100 VDC	57 mm	1.46 "	198 mm	37 mm	7.8 in	2.24 "	AC DC Converter	Chassis Mount	771.1 g	1.7 lbs	305 VAC	90 %	3750 V	OCP OVP SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

700mA 50 ~ 100V Constant Current LED Driver AC DC Converter Topology 1 Output
