121-202EAJ-Q01
ActiveHoneywell Sensing and Productivity Solutions

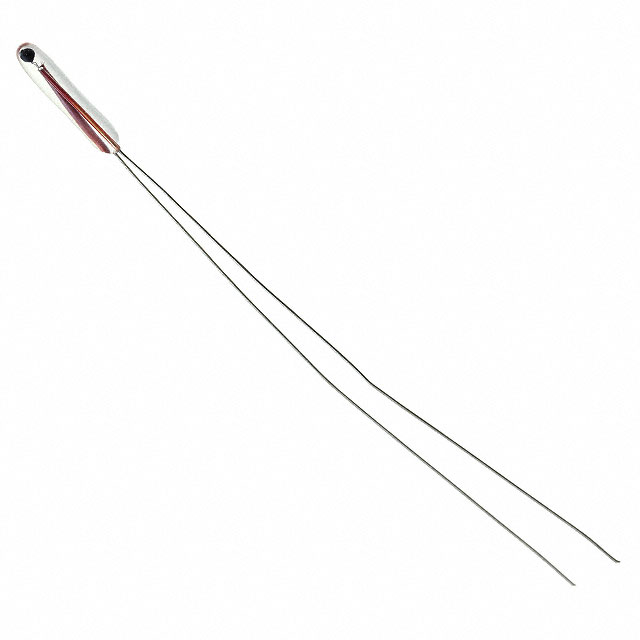

THERMISTOR NTC 2KOHM 3518K PROBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
121-202EAJ-Q01
ActiveHoneywell Sensing and Productivity Solutions
THERMISTOR NTC 2KOHM 3518K PROBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 121-202EAJ-Q01 |
|---|---|
| B Value Tolerance | 2.6 % |
| B25/85 | 3518 K |
| Length - Lead Wire [x] | 2 in |
| Length - Lead Wire [x] | 50.8 mm |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 300 °C |
| Operating Temperature [Min] | -60 °C |
| Package / Case | Cylindrical Probe, Glass |
| Resistance in Ohms @ 25°C | 2 kΩ |
| Resistance Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 15.64 | |
Description
General part information
121-202 Series
NTC Thermistor 2k Cylindrical Probe, Glass
Documents
Technical documentation and resources
