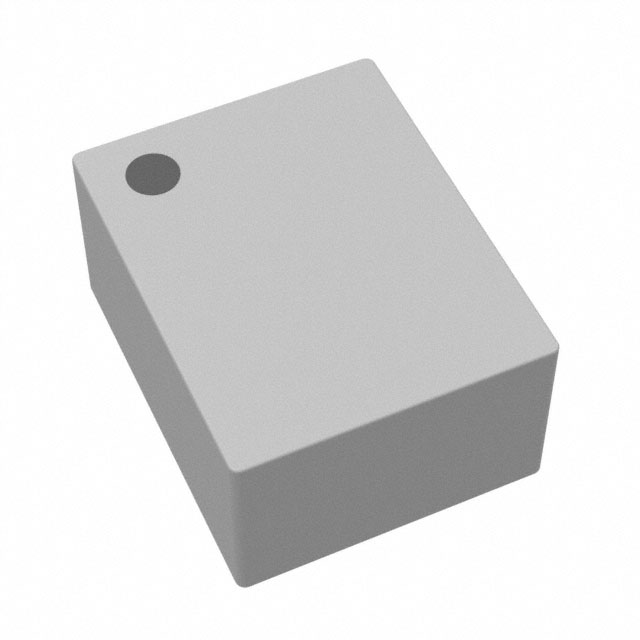

HTEK20161T-1R0MSR
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 4.5A 43 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
HTEK20161T-1R0MSR
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 4.5A 43 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HTEK20161T-1R0MSR |
|---|---|
| Current Rating (Amps) | 4.5 A |
| DC Resistance (DCR) [Max] | 43 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0806 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.26 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.13 | ||
| 6000 | $ 0.12 | |||
| 15000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.11 | |||
Description
General part information
HTEK20161 Series
1 µH Shielded Inductor 4.5 A 43mOhm Max 0806 (2016 Metric)
Documents
Technical documentation and resources
No documents available
