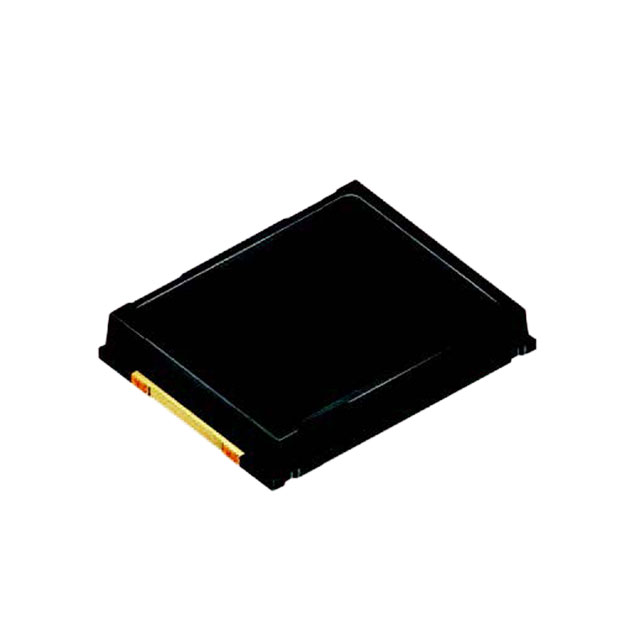

SFH 2200 FA
Obsoleteams-OSRAM USA INC.
SENSOR PHOTODIODE 940NM 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 2200 FA |
|---|---|
| Active Area | 7.02 mm² |
| Current - Dark (Typ) | 1 nA |
| Diode Type | PIN |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Response Time | 40 ns |
| Spectral Range [Max] | 1100 nm |
| Spectral Range [Min] | 740 nm |
| Viewing Angle | 120 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SFH 2200 Series
Photodiode 940nm 40ns 120° 2-SMD, No Lead
