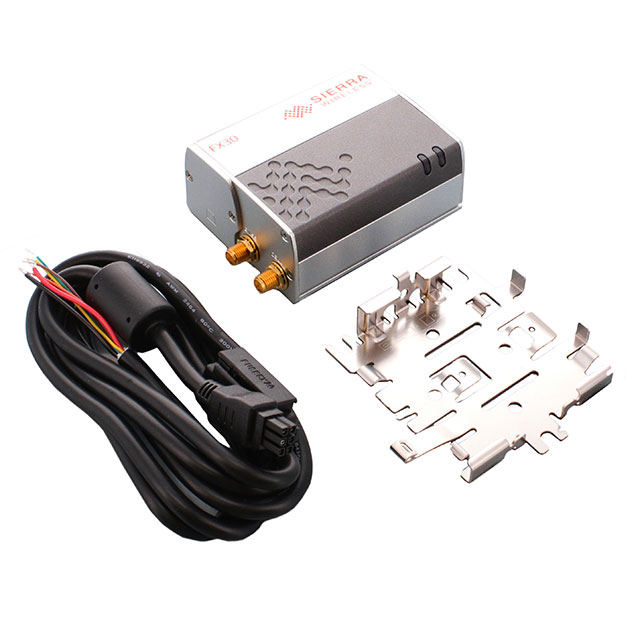

FX30-LTEM1_1104534

Obsolete

Semtech Corporation

GATEWAY IOT PROGR WORLDWIDE

Search across all available documentation for this part.

Obsolete

Semtech Corporation

GATEWAY IOT PROGR WORLDWIDE

Technical Specifications

Parameters and characteristics for this part

Specification	FX30-LTEM1_1104534

Applications	General Purpose
Features	Legato, Linux, Programmable
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz
Function	Gateway
Interface	RJ-45, Digital, Analog, USB, Ethernet
Modulation or Protocol	EDGE, GSM, Cellular, LTE, GPRS
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	4.75 V

Part	Applications	Frequency	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Features	Modulation or Protocol	For Use With/Related Products	Data Rate (Max)	Accessory Type	Network Technology	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Data Rate (Max) [Max]
Semtech Corporation FX30-LTEM1_1104534	General Purpose	850 MHz 900 MHz 1800 MHz 1900 MHz	Gateway	4.75 V	32 VDC	Analog Digital Ethernet RJ-45 USB	Legato Linux Programmable	Cellular EDGE GPRS GSM LTE
Semtech Corporation FX30 ACCESSORY_6001157									FX30
Semtech Corporation FX30_1103214	General Purpose	850 MHz 900 MHz 1800 MHz 1900 MHz	Gateway	4.75 V	32 VDC	Analog Digital Ethernet RJ-45 USB	Legato Linux Programmable	Cellular EDGE GPRS GSM HSPA+
Semtech Corporation FX30_1104533	General Purpose	850 MHz 900 MHz 1800 MHz 1900 MHz	Gateway	4.75 V	32 VDC	Analog Digital Ethernet RJ-45 USB	Legato Linux Programmable	Cellular EDGE GPRS GSM HSPA+		70 Mbps
Semtech Corporation FX30 ACCESSORY_6001156									FX30		Mounting Bracket
Semtech Corporation FX30 ACCESSORY_6001158												IOT	-30 ░C	75 ░C	60 mm	82 mm	32 mm
Semtech Corporation FX30 ACCESSORY_6001155									FX30		DC Power Cable
Semtech Corporation FX30ETH-LTEM1_1104086	General Purpose	850 MHz 900 MHz 1800 MHz 1900 MHz	Gateway	4.75 V	32 VDC	Analog Digital Ethernet RJ-45 USB	Legato Linux Programmable	Cellular EDGE GPRS GSM LTE										110 Mbps
Semtech Corporation FX30 ACCESSORY_6001090									FX30		AC Adapter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LTE Cat M/2G (GSM, GPRS) Cellular, EDGE, GPRS, GSM, LTE Gateway AT&T, Verizon Analog, Digital, Ethernet, RJ-45, USB

Technical documentation and resources

No documents available
