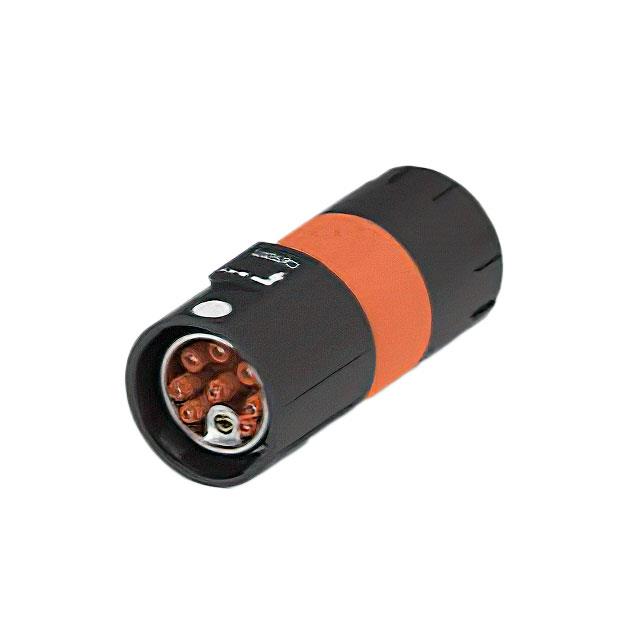

ESB202N00310500000
ActiveTE Intercontec
CONN PLG HSG FMALE 9POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESB202N00310500000
ActiveTE Intercontec
CONN PLG HSG FMALE 9POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESB202N00310500000 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Nut, 1 EMI Ring, 1 Contact Housing, 1 Clip, 1 Grommet, 1 Shell Housing, 1 Contact Block |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | PE |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 5 |
| Number of Positions [custom] | 9 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Type | For Female Sockets |
ESB20 Series
| Part | Shell Material | Shielding | Contact Shape | Connector Type | Housing Color | Orientation | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Insert Material | Type | Features | Fastening Type | Includes | Ingress Protection | Mounting Type | Note | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | PE | 3 | 5 | 9 | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | |
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | 15 | ||||
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | PE | 3 | 5 | 9 | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | |
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | PE | 3 | 5 | 9 | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | |
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | PE | 3 | 5 | 9 | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | |
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | 15 | ||||
TE Intercontec | Zinc Die Cast | Shielded | Circular | Plug Housing | Black | Keyed | Polyamide (PA) Nylon Polybutylene Terephthalate (PBT) | For Female Sockets | Backshell Cable Clamp Coupling Nut | Push-Twist | 1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing | IP66/IP67 | Free Hanging (In-Line) | Contacts Not Included | -20 C | 130 °C | UL94 V-0 | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.02 | |
| 10 | $ 21.91 | |||
| 30 | $ 20.96 | |||
| 60 | $ 20.29 | |||
| 120 | $ 19.61 | |||
| 270 | $ 18.53 | |||
| 510 | $ 17.99 | |||
Description
General part information
ESB20 Series
9 (5 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
