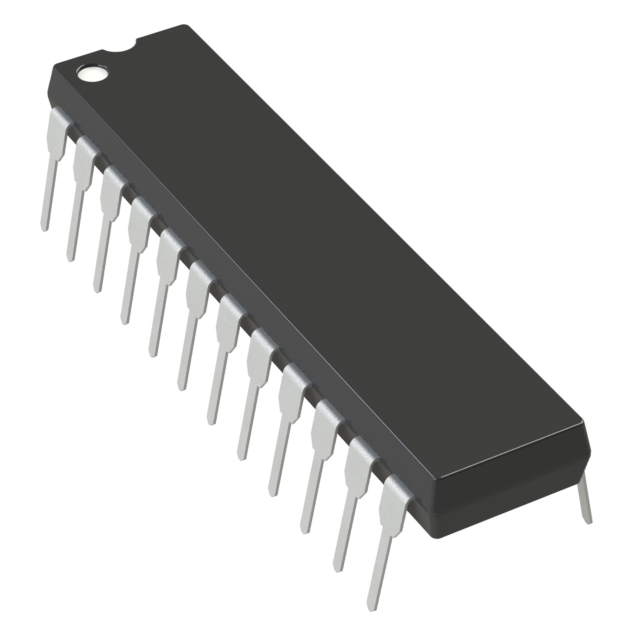

CY74FCT480ATPC

Obsolete

Texas Instruments

IC PARITY GEN/CHKER 8-BIT 24DIP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC PARITY GEN/CHKER 8-BIT 24DIP

Technical Specifications

Parameters and characteristics for this part

Specification	CY74FCT480ATPC

Current - Output High, Low [custom]	64 mA
Current - Output High, Low [custom]	32 mA
Logic Type	Parity Generator/Checker
Mounting Type	Through Hole
Number of Circuits	8-Bit
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.3 in
Package / Case	24-DIP
Package / Case	7.62 mm
Supplier Device Package	24-PDIP
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Package / Case	Package / Case	Package / Case	Number of Circuits	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Texas Instruments CY74FCT480ATPC	0.3 in	24-DIP	7.62 mm	8-Bit	64 mA	32 mA	24-PDIP	Parity Generator/Checker	4.75 V	5.25 V	85 °C	-40 °C	Through Hole
Texas Instruments CY74FCT480BTPC	0.3 in	24-DIP	7.62 mm	8-Bit	64 mA	32 mA	24-PDIP	Parity Generator/Checker	4.75 V	5.25 V	85 °C	-40 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Parity Generator 8-Bit 24-PDIP
