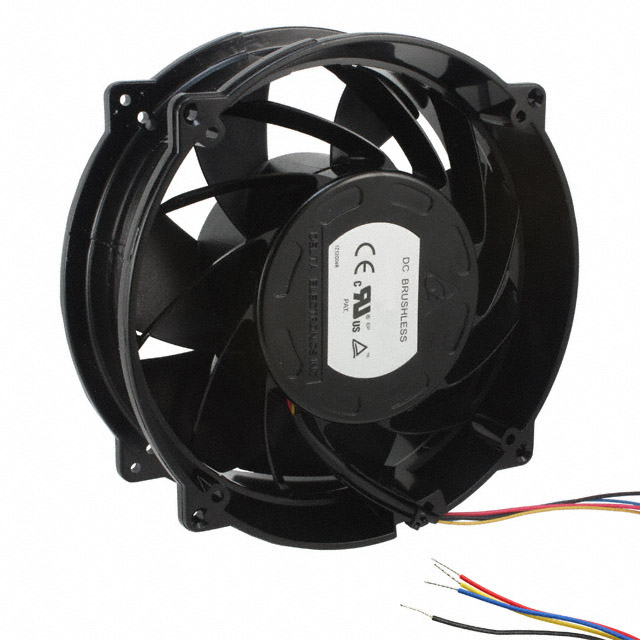

THB2048CT

Obsolete

Delta Electronics

FAN AXIAL 208X70MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 208X70MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THB2048CT

Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	4.8 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	73.6 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	230.4 W
RPM	5800 RPM
Size / Dimension [diameter]	208 mm
Static Pressure	670.1 Pa
Static Pressure	2.69 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	75 VDC
Voltage Range [Min]	36 VDC
Weight	1.6 kg
Weight	3.5 lbs
Width [y]	70 mm

Part	Termination	Material - Blade	RPM	Static Pressure	Static Pressure	Current Rating (Amps)	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Lifetime @ Temp.	Fan Type	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Features	Size / Dimension [diameter]	Voltage - Rated [custom]	Power (Watts)	Width [y]	Weight	Weight	Approval Agency	Operating Temperature [Max]	Air Flow	Air Flow
Delta Electronics THB2048CT	4 Wire Leads	Plastic	5800 RPM	670.1 Pa	2.69 in H2O	4.8 A	Aluminum	-20 °C	70 °C	-20 C	70 °C	73.6 dB(A)	70000 Hrs	Tubeaxial	Ball	75 VDC	36 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	208 mm	48 VDC	230.4 W	70 mm	1.6 kg	3.5 lbs	CE cURus TUV
Delta Electronics THB2048CTC3P
Delta Electronics THB2048HG-A	4 Wire Leads	Plastic	7700 RPM	1031.4 Pa	4.141 in H2O	4.2 A	Aluminum	-10 °C		-10 °C	70 °C	78 dB(A)	50000 Hrs	Tubeaxial	Ball	60 V	36 VDC	Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach)	208 mm	48 VDC	201.6 W	2 "	1.3 kg	2.9 lbs	CE cURus TUV	70 °C	690.3 CFM	19.33 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Round - 208mm Dia Ball 827.4 CFM (23.17m³/min) 4 Wire Leads
