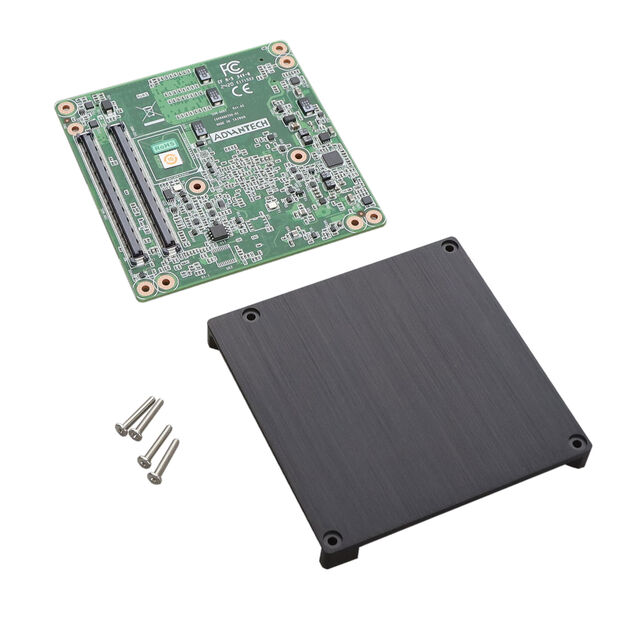

SOM-6867RCB-U0A2

Active

Advantech Corp

SBC 2.0GHZ 4 CORE 8GB/64GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 2.0GHZ 4 CORE 8GB/64GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-6867RCB-U0A2

Cooling Type	Fan
Core Processor	Intel Celeron J1900
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCIe, LVDS, GPIO, SMBus, SPI, LCD, SATA
Form Factor	COM Express R2.1 Compact Module, Type 6
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	64 GB, 8 GB
Size / Dimension [x]	3.74 "
Size / Dimension [x]	94.99 mm
Size / Dimension [y]	3.74 "
Size / Dimension [y]	94.99 mm
Speed	2 GHz
Storage Interface	SATA 3.0 (2)
USB	USB 2.0 (8), USB 3.0 (1)
Video Outputs	LVDS, LCD, VGA, HDMI
Watchdog Timer	True

Part	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Core Processor	Number of Cores	Video Outputs	Ethernet	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Cooling Type	Expansion Site/Bus	Storage Interface	USB	RAM Capacity/Installed	Digital I/O Lines	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
Advantech Corp SOM-6867ACB-S7A2	COM Express R2.1 Compact Module Type 6	60 °C	0 °C	1.75 GHz	Intel Atom E3827	2	HDMI LCD LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	3.74 "	3.74 "	94.99 mm	94.99 mm	Fan	GPIO LCD LVDS PCIe SATA SMBus SPI	SATA 3.0 (2)	USB 2.0 (8) USB 3.0 (1)	8 GB 64 GB
Advantech Corp SOM-6867AXB-S9A2	COM Express R2.1 Compact Module Type 6	85 °C	-40 °C	1.91 GHz	Intel Atom E3845	4	HDMI LCD LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	3.74 "	3.74 "	94.99 mm	94.99 mm	Fan	GPIO LCD LVDS PCIe SATA SMBus SPI	SATA 3.0 (2)	USB 2.0 (8) USB 3.0 (1)	8 GB 64 GB
Advantech Corp SOM-6867RCB-U0A2	COM Express R2.1 Compact Module Type 6	60 °C	0 °C	2 GHz	Intel Celeron J1900	4	HDMI LCD LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	3.74 "	3.74 "	94.99 mm	94.99 mm	Fan	GPIO LCD LVDS PCIe SATA SMBus SPI	SATA 3.0 (2)	USB 2.0 (8) USB 3.0 (1)	8 GB 64 GB
Advantech Corp SOM-6867RC-U0A1E	COM Express R2.1 Compact Module Type 6	60 °C	0 °C	2.42 GHz	Intel Celeron J1900	4	DD DP DVI HDMI LCD LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	3.74 "	3.74 "	94.99 mm	94.99 mm	Heat Sink		SATA 2.0 (2)	USB 2.0 (8) USB 3.0 (1)		8	8 GB	0 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 260.40

General part information

Single Board Computer 2GHz 4 Core 8GB/64GB RAM Intel Celeron J1900
