FA-118T 32.00M-60NNNNGA0REB

Active

EPSON

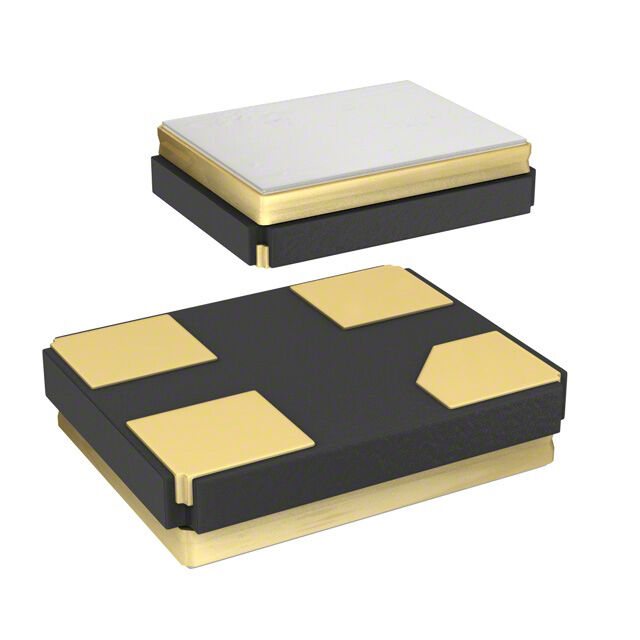

FA-118T 32.00M-60NNNNGA0REB: XTL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Configuration Guide

FA-118T 32.00M-60NNNNGA0REB

Active

EPSON

FA-118T 32.00M-60NNNNGA0REB: XTL

Deep-Dive with AI

DocumentsDatasheet Product Configuration Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FA-118T 32.00M-60NNNNGA0REB

ESR (Equivalent Series Resistance)	100 Ohms
Frequency	32 MHz
Frequency Stability	20 ppm
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max]	0.014 in
Height - Seated (Max) [Max]	0.35 mm
Load Capacitance	6 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SMD, No Lead
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.047 in
Size / Dimension [y]	1.2 mm
Supplier Device Package	4-SMD (1.6x1.2)
Type	MHz Crystal

FA-118T Series

Part	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Frequency Stability	Frequency	Load Capacitance	Operating Mode	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Stability [Min]	Frequency Stability [Max]
EPSON FA-118T 24.00M-70AANNGB0REB	10 ppm	0.014 in	0.35 mm	Surface Mount	20 ppm	24 MHz	7 pF	Fundamental	200 Ohm	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 32.00M-C0AANNHA0REB	10 ppm	0.014 in	0.35 mm	Surface Mount	20 ppm	32 MHz	12 pF	Fundamental	100 Ohms	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 48.00M-60YYYYU80REB	30 ppm	0.014 in	0.35 mm	Surface Mount	30 ppm	48 MHz	6 pF	Fundamental	80 Ohm	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 24.00M-C0AAAAU60RE3	10 ppm	0.014 in	0.35 mm	Surface Mount	10 ppm	24 MHz	12 pF	Fundamental	200 Ohm	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 32.00M-60NNNNGA0REB	20 ppm	0.014 in	0.35 mm	Surface Mount	20 ppm	32 MHz	6 pF	Fundamental	100 Ohms	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead	4-SMD (1.6x1.2)	85 °C	-40 °C
EPSON FA-118T 48.0000MF20X-AJ	10 ppm	0.014 in	0.35 mm	Surface Mount	20 ppm	48 MHz	8 pF	Fundamental	80 Ohm	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 32.00M-60NNNNGA0RE0	20 ppm	0.014 in	0.35 mm	Surface Mount	20 ppm	32 MHz	6 pF	Fundamental	100 Ohms	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 48.00M-60AANNG80REB	10 ppm	0.014 in	0.35 mm	Surface Mount	20 ppm	48 MHz	6 pF	Fundamental	80 Ohm	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 38.40M-A0AAFFN60RE3	10 ppm	0.014 in	0.35 mm	Surface Mount	15 ppm	38.4 MHz	10 pF	Fundamental	80 Ohm	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead
EPSON FA-118T 32.00M-60AA8CNA0RE5	10 ppm	0.014 in	0.35 mm	Surface Mount		32 MHz	6 pF	Fundamental	100 Ohms	0.047 in	1.2 mm	1.6 mm	0.063 in	MHz Crystal	4-SMD No Lead				-12 ppm	8 ppm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.02

Description

General part information

FA-118T Series

32 MHz ±20ppm Crystal 6pF 100 Ohms 4-SMD, No Lead
