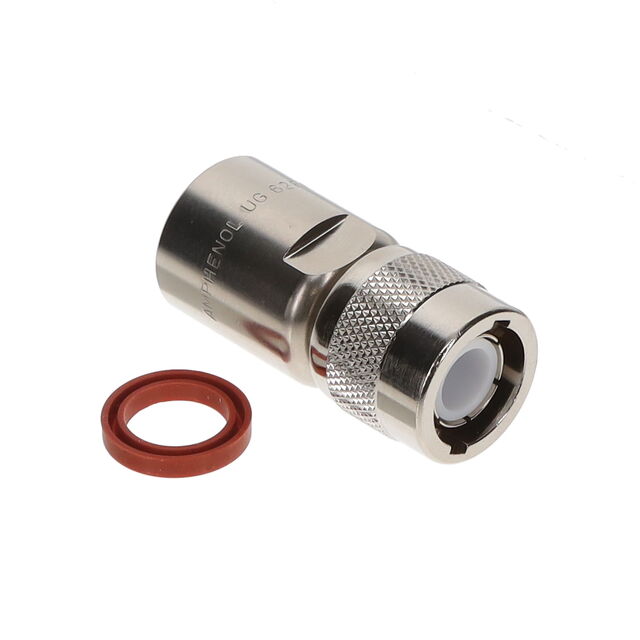

082-532

Active

Amphenol RF

CONN C PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN C PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-532

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	C Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

Part	Contact Termination	Shield Termination	Number of Ports	Impedance	Mounting Type	Connector Style	Includes	Center Contact Plating	Cable Group	Voltage Rating	Ingress Protection	Body Finish	Connector Type	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Frequency - Max [Max]	Housing Color	Fastening Type	Center Contact Material	Dielectric Material
Amphenol RF 082-532	Solder	Clamp	1	50 Ohms	Free Hanging (In-Line)	C Type	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket	Silver	213 214 225 302 393 87 8A 9 9A 9B RG-8	1500 V	Weatherproof	Nickel	Male Pin Plug	500	-65 ░C	165 °C	Brass	11 GHz	Silver	Bayonet Lock	Brass	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

C Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
