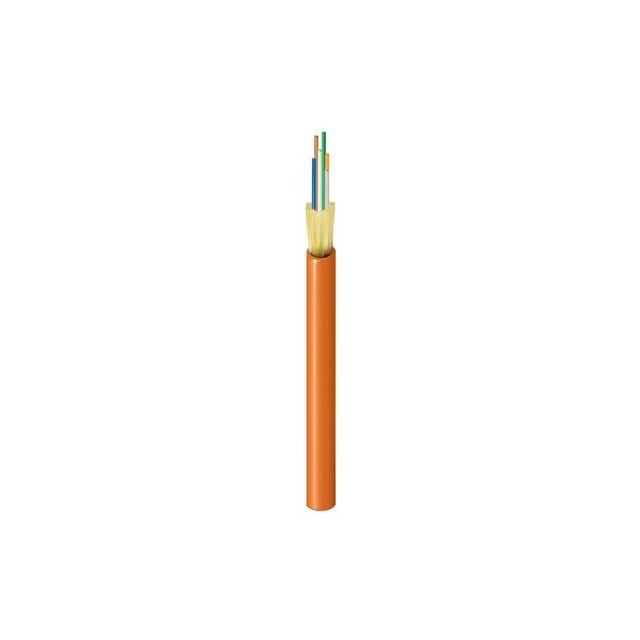

FI2D006R9

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI2D006R9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	6 Fibers
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Core Diameter [diameter]	Style	Cladding Diameter [diameter]	Jacket (Insulation) Material	Tensile Strength	Features	Features	Jacket Color	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter
Belden Inc. FI2D006R9	OFNR	-20 C	70 °C	0.22 in	5.59 mm	Multimode	50 µm	Multiple Fibers	125 µm	Poly-Vinyl Chloride (PVC)	20.4 kg	6 Fibers	Rip Cord	Orange
Belden Inc. FI2D006F9	OFCR	-20 C	70 °C	0.5 in	12.7 mm	Multimode	50 µm	Multiple Fibers	125 µm	Poly-Vinyl Chloride (PVC)	20.4 kg	6 Fibers	Armored	Orange
Belden Inc. FI2D006A9	OFCP	0 °C	70 °C			Multimode	50 µm	Multiple Fibers	125 µm	Poly-Vinyl Chloride (PVC)	20.4 kg	6 Fibers	Armored	Orange	0.44 in	11.18 mm
Belden Inc. FI2D006P9	OFNP	0 °C	70 °C	0.19 in	4.83 mm	Multimode	50 µm	Multiple Fibers	125 µm	Poly-Vinyl Chloride (PVC)	20.4 kg	6 Fibers	Rip Cord	Orange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Cable Orange Multimode 125µm
