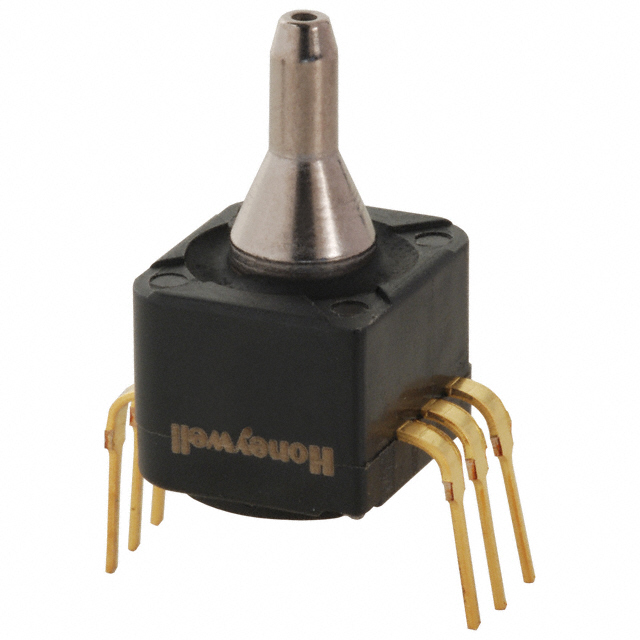

40PC500G2A
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 500PSIG 0.18" 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
40PC500G2A
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 500PSIG 0.18" 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 40PC500G2A |
|---|---|
| Accuracy | 3 % |
| Applications | Board Mount |
| Features | Amplified Output |
| Maximum Pressure [Max] | 1000 PSI |
| Maximum Pressure [Max] | 6894.76 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 3447.38 kPa |
| Operating Pressure | 500 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -45 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | 6-DIP Module |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 375.89 | |
Description
General part information
40PC500 Series
Pressure Sensor 500PSI (3447.38kPa) Vented Gauge Male - 0.18" (4.57mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
