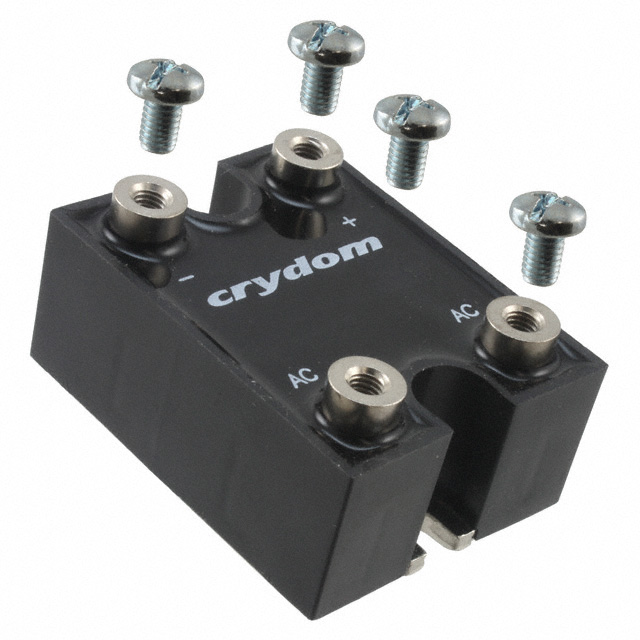

M50100SB600

Active

Sensata-Crydom

BRIDGE RECT 1P 600V 100A MODULE

Search across all available documentation for this part.

Active

Sensata-Crydom

BRIDGE RECT 1P 600V 100A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	M50100SB600

Current - Average Rectified (Io)	100 A
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Package / Case	Supplier Device Package	Diode Type	Voltage - Peak Reverse (Max)
Sensata-Crydom M50100TB1200	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	1.2 kV	Module	Module	Three Phase
Sensata-Crydom M50100SB600	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	600 V	Module	Module	Single Phase
Sensata-Crydom M50100SB1600	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C		Module	Module	Single Phase	1.6 kV
Sensata-Crydom M50100SB1200	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	1.2 kV	Module	Module	Single Phase
Sensata-Crydom M50100SB400	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	400 V	Module	Module	Single Phase
Sensata-Crydom M50100TB600	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	600 V	Module	Module	Three Phase
Sensata-Crydom M50100TB1000	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	1000 V	Module	Module	Three Phase
Sensata-Crydom M50100TB400	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	400 V	Module	Module	Three Phase
Sensata-Crydom M50100TB800	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C	800 V	Module	Module	Three Phase
Sensata-Crydom M50100TB1600	Chassis Mount	1.2 V	Standard	100 A	-40 °C	125 ¯C		Module	Module	Three Phase	1.6 kV
