Q-2I05H0003108i

Active

Amphenol Custom Cable

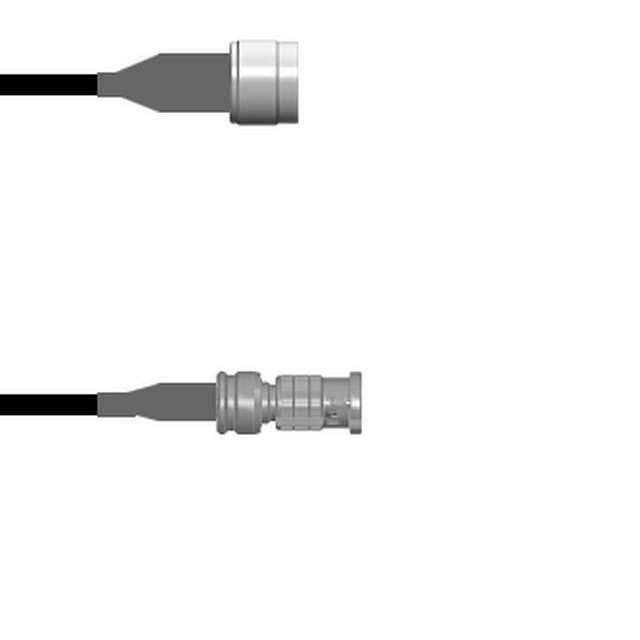

CBL ASSY HDBNC-NTYPE PLUG-PLG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I05H0003108i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLUG-PLG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I05H0003108i

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2I05H0 Series

Part	Frequency - Max [Max]	Length	Length	Length	Color	1st Connector	1st Connector Mounting Type	Overall Impedance	Cable Type	Style	2nd Contact Gender	1st Contact Gender	2nd Connector	Features	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2I05H0003003M	6000 MHz	3 m	118.1 in	9.8 '	Black	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-174	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H00050.5M	6000 MHz	50 cm	19.69 "		Copper	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-316	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0003108i	6000 MHz	2.7 m	108 in	9 ft	Black	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-174	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0005060i	6000 MHz	1.5 m	5 '	5 ft	Copper	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-316	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0003072i	6000 MHz	1.8 m	72 in	6 ft	Black	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-174	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0005108i	6000 MHz	2.7 m	108 in	9 ft	Copper	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-316	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0005.25M	6000 MHz				Copper	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-316	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2I05H0005001M	6000 MHz	1 m	39.4 in	3.3 ft	Copper	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-316	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0003024i	6000 MHz	609.6 mm	24 "		Black	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-174	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05H0005002M	6000 MHz	2 m	78.7 in	6.6 ft	Copper	HD-BNC Plug	Free Hanging (In-Line)	50 Ohms	RG-316	HD-BNC to N-Type	Male	Male	N-Type Plug	Shielded	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 113.96
		25	$ 111.75
		50	$ 109.53
		100	$ 107.32
		250	$ 105.10

Description

General part information

Q-2I05H0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
