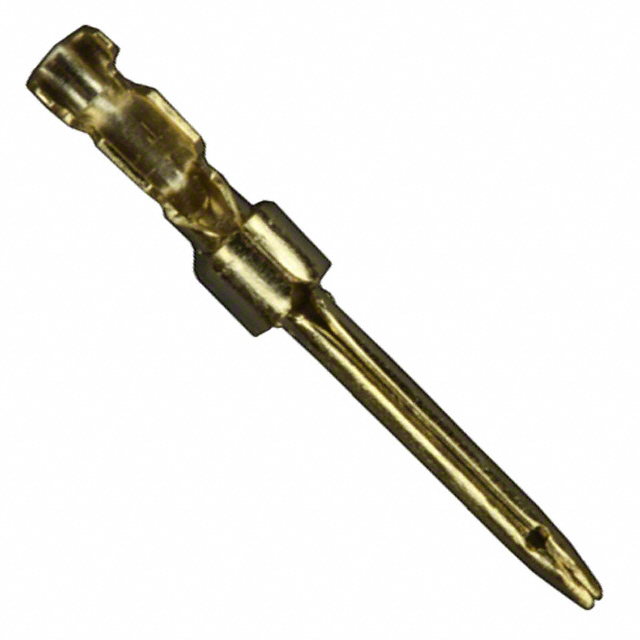

L17-RR-D2-M-01-100
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PIN 24-28AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRR, HR Series
L17-RR-D2-M-01-100
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PIN 24-28AWG CRIMP
Deep-Dive with AI
DocumentsRR, HR Series
Technical Specifications
Parameters and characteristics for this part
| Specification | L17-RR-D2-M-01-100 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Form | Stamped |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Insulation Support |
| Type | Signal |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
L17RRD2 Series
| Part | Contact Type | Features | Contact Finish | Contact Form | Wire Gauge [Min] | Wire Gauge [Max] | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Contact Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Gold | Stamped | 24 AWG | 28 AWG | Signal | 15 µin | 0.38 µm | Crimp | ||
Amphenol ICC (Commercial Products) | Female Socket | Insulation Support | Stamped | 24 AWG | 28 AWG | Signal | 15 µin | 0.38 µm | Crimp | Copper Alloy | ||
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Gold | Stamped | 24 AWG | 28 AWG | Signal | Crimp | Copper Alloy | Flash | ||
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Gold | Stamped | 24 AWG | 28 AWG | Signal | 15 µin | 0.38 µm | Crimp | ||
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Gold | Stamped | 24 AWG | 28 AWG | Signal | 15 µin | 0.38 µm | Crimp | Copper Alloy | |
Amphenol ICC (Commercial Products) | Female Socket | Insulation Support | Gold | Stamped | 24 AWG | 28 AWG | Signal | 30 Áin | 0.76 Ám | Crimp | ||
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Gold | Stamped | 24 AWG | 28 AWG | Signal | 8 çin | 0.203 çm | Crimp | ||
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Stamped | 24 AWG | 28 AWG | Signal | 15 µin | 0.38 µm | Crimp | Copper Alloy | ||
Amphenol ICC (Commercial Products) | Female Socket | Insulation Support | Stamped | 24 AWG | 28 AWG | Signal | 30 Áin | 0.76 Ám | Crimp | Copper Alloy | ||
Amphenol ICC (Commercial Products) | Male Pin | Insulation Support | Stamped | 24 AWG | 28 AWG | Signal | 30 Áin | 0.76 Ám | Crimp | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.16 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.06 | |||
Description
General part information
L17RRD2 Series
D-Sub Contact Male Pin Gold 24-28 AWG Crimp Stamped
